SQUARE D

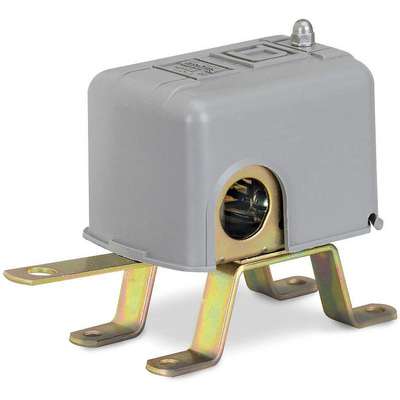

Square D DPST 460VAC Open Liquid Level Switch, Open On Rise, NEMA Rating 1
Hover over image to magnify
#922832-5 | Pkg Qty: 1
$79.37 pkg | $79.37 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
10 A
Height
4.27 in.
Body Material
Steel
Item
Open Liquid Level Switch
Brand
SQUARE D
Maximum Current
600A
Conduit Size
3-1/2 in.
Maximum Voltage
575 V
Contact Form
DPST
Mfr. Part Number
9036DG2R
Electrical Connections
Screw Clamp
Mounting
Open Tank
Float Diameter
7.00 in.
Mounts
Top
Float Length
7.00 in.
NEMA Rating
1
Float Material
Stainless Steel
Operating Temperature Range
-2 deg. F to 220 deg. F
Float Position
Below
Overall Length
7.10 in.
Float Travel
1-1/4 in.
Package Quantity
1
HP @ 1 Phase - 115 V
2
Shipping Weight
1.19 lb.
HP @ 1 Phase - 120 V
2
Switch Function
Open On Rise
HP @ 1 Phase - 230 V
3
Type
Open Tank
HP @ 1 Phase - 240 V
3
VA Rating
460 VAC
HP @ 3 Phase - 230 V
5
Width
2.53 in.
HP @ 3 Phase - 240 V
5
General
Ambient Temp. Range
-22 to 220
HP @ 3 Phase - 230V
5
HP @ 1 Phase - 115V
2
HP @ 3 Phase - 240V
5 hp
HP @ 1 Phase - 120V
2 hp
Includes
Reverse Action - Does Not Include Float or Rod
HP @ 1 Phase - 230V
3
Operating Temp. Range
-22° to 220°F
HP @ 1 Phase - 240V
3 hp
Standards
UL, CSA
Product Description
This float switch is designed to control small motor loads directly. It helps to provide a simple, positive means of mechanically altering two pumps or motors. Class 9036 switches are single-lever operated.
