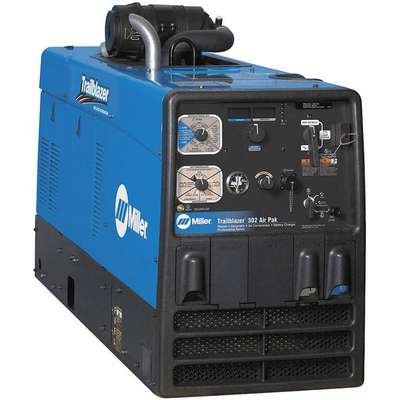

Miller Electric, Trailblazer 302 Air Pak Gas Powered Engine Driven Welder with Kohler Engine

Name: Miller Electric, Trailblazer 302 Air Pak Gas Powered Engine Driven Welder with Kohler Engine
Brand: MILLER ELECTRIC
SKU: 9228311
Price: 24506.91 USD
Availability: InStock

Hover over image to magnify

#922831-1 | Pkg Qty: 1

This item requires special shipping, additional charges may apply.

Alternate products displayed may not be identical in style or function to original selection.

No alternate products are currently available

See more options:

Shop All Products

Technical Specifications

Key Specifications

Amperage Range

10-300 A

Mfr. Part Number

907549003

Brand

MILLER ELECTRIC

Package Quantity

Continuous Auxiliary Power

10,000 W

Peak Auxiliary Power

11,000 W

Depth

42-19/64 in.

Phase

Single

Engine Brand

Kohler

Series

Ranger 250 GXT

Fuel Type

Gas

Shipping Weight

826 lb.

Height

29-29/32 in.

Start Type

Electric

Horsepower

23 HP

Width

21-1/2 in.

Item

Engine Driven Welder

General

Air Compressor Delivery

22 CFM @ 2400 RPM (Idle), 28 CFM @ 3000 RPM, 31 CFM @ 3600 RPM

Rated Output at Duty Cycle (Stick)

280 A @ 100%

Engine Model

Kohler CH750

Remote Connection Type

14-Pin (Miller)

Fuel Tank Capacity Range

10 gal – 20 gal

Stick Welding Maximum Output Current

300 A

Generator Outlet Type

14-50R, 5-20R

Stick Welding Minimum Output Current

10 A

27 hp

Stick Welding Output @ Duty Cycle

280 A @ 32 V, 100%

Horsepower Range

15 hp – 30 hp

TIG Arc Start Feature

Lift Arc Start

Includes

Air Cooler with Separator, Electronic Fuel Pump, GFCI Receptacles

TIG Welding Maximum Output Current

300 A

MIG Welding Maximum Output Current

350 A

TIG Welding Minimum Output Current

10 A

MIG Welding Output @ Duty Cycle

300 A @ 32 V, 100%, 350 A @ 32 V, 60%

TIG Welding Output @ Duty Cycle

280 A @ 32 V, 100%

Max. Amperage Range (Stick)

150 A – 300 A

Welder Model Type

with GFCI Receptacles

Maximum Pressure - Air Compressor

160 psig

Welder Type

with GFCI Receptacles

Rated Output CC/AC

200A @ 25V, 60%

Welding Mode

CC/CV

Rated Output CC/DC

280A @ 32V, 100%

Product Description

Engine Driven Welder, Trailblazer 302 Air Pak, Start Type Electric, Rated Output CC/AC 200A @ 25V, 60 Percent, Rated Output CC/DC 280A @ 32V, 100 Percent, Amperage Range 10 to 300, Continuous Auxiliary Power 11,000 W, Peak Auxiliary Power 13,000 W, 1 Phase, Engine Brand Kohler, Fuel Type Gas, 27 hp HP, Height 28 in, Depth 59 39/64 in, Width 20 in, Includes Air Cooler with Separator, Electronic Fuel Pump, GFCI Receptacles
