BLACKBURN

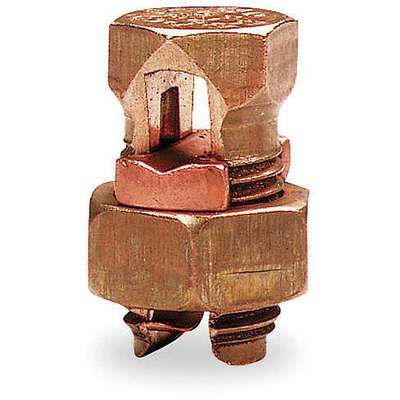

Blackburn Split-Bolt Connector, Bronze Alloy, Min. Tap Conductor w/1 Max. Main (AWG) 16 str
Hover over image to magnify
#922822-2 | Pkg Qty: 1
$7.60 pkg | $7.60 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Bronze
Maximum Voltage
600 V
Brand
BLACKBURN
Mfr. Part Number
3H
Color Family
Copper
Overall Length
1.06 in.
Connects
Copper to Copper Wire
Overall Width
0.53 in.
Design
Hex Head
Package Quantity
1
Head Style
Hex Head
Shipping Weight
.05 lb.
Item
Split-Bolt Connector
Standards
CSA Certified, UL E9809
Material
Bronze Alloy
Wire Range
8 sol to 3 sol
Material of Construction
Bronze Alloy
General
Body Finish
Plain
For Run Wire Size
3 AWG, 4 AWG, 6 AWG
Compatible Manufacturer Model Number
3H
Hex Nut Size
0.719 in
For Maximum Equal Wire Size
3 AWG
Minimum Tap Conductor w/1 Maximum Main
16 str
For Maximum Run Wire Size
(2) 3 AWG
Pressure Bar Material
Copper
For Maximum Tap Wire Size
3 AWG
RoHS Compliant
Yes
For Minimum Equal Wire Size
8 AWG
Torque
225 in-lb
For Minimum Run Wire Size
(2) 8 AWG
Wire Range with Equal Main and Tap
8 AWG – 3 AWG
For Minimum Tap Wire Size
8 AWG
Product Description
Split-bolt connector is for copper to copper connections. Bolt and nut are made of high strength corrosion-resistant bronze alloy.
Item Barcode
Split-Bolt Connector,8 Sol To
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3LK57 | Split-Bolt Connector,8 |
 | UNSPSC CODES | 39121408 | |
 | VMRS (ATA) CODES | 053-006-009 | Split-Bolt Connector,8 |
