DAYTON

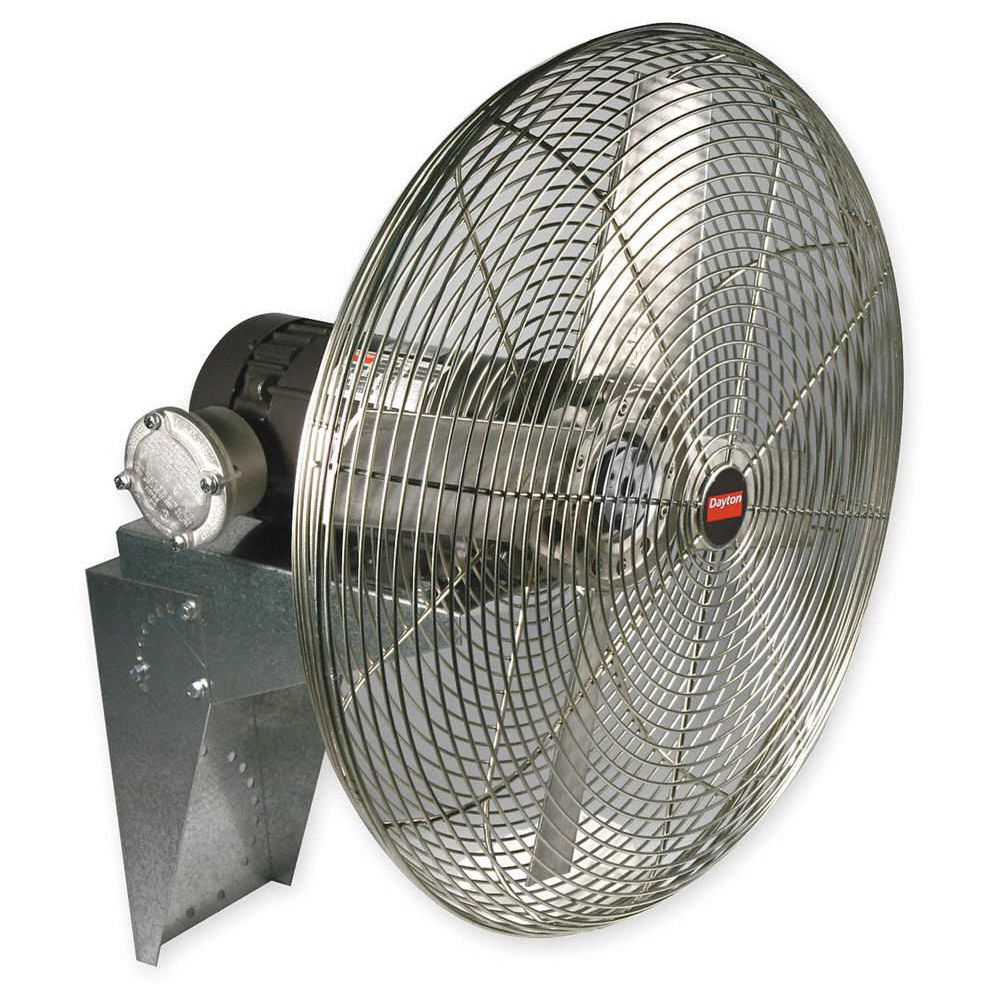

Dayton 30" Hazardous-Location Industrial Fan, Stationary, Wall, 115/230 VAC

Hover over image to magnify
Air Circulator,30 In,10,937
Air Circulator,30 In,10,937

#922796-7 | Pkg Qty: 1

$1,321.38 pkg | $1,321.38 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Flow
10,937 cfm
Motor Type
Capacitor Start
Assembled/Unassembled
Yes
Mounting Location
Wall
Bearing Type
Ball
Number of Blades
4
Blade Diameter
30 in.
Oscillating
No
Blade Material
Cast Aluminum
Outside Diameter
33 in.
Brand
DAYTON
Package Quantity
1
Drive Type
Direct
Phase
1
Guard Material
Steel
Shaft Diameter
5/8 in.
Hz
60 Hz
Shipping Weight
98 lb.
Item
Industrial Fan
Sound Level
80 dBA
Mfr. Part Number
1VCH2
Standards
OSHA Compliant Wire Guards; UL Listed E29183 for Class 1, Div. 1, Group D, and Class II, Div. I, Groups E, F, and G
Mobile/Stationary
Stationary
Thermal Protection
Automatic
Motor Enclosure
Totally Enclosed Fan Cooled
Voltage
115/230V AC
Motor HP
3/4
Watts
701
Motor Insulation
Class B
Width
33 in.
Motor RPM
1140
General
Air Circulator Height
37 in.
Environmental Applications
Industrial
Air Velocity @ 10 Ft.
1390 fpm
Fan Housing Material
Steel
Air Velocity @ 20 Ft.
835 fpm
Fan Mounting Location
Wall
Air Velocity @ 40 Ft.
385 fpm
Includes
Secondary Support Cable, Wall Bracket
Air Velocity @ 60 Ft.
295 fpm
Max. Ambient Temp.
104 Degrees F
Air Velocity @ 80 Ft.
260 fpm
Wheeled Base
Stationary
Application
Hazardous Location Spot Cooling

Product Description

Hazardous-location industrial wall-mount fans resist sparking to reduce the risk of ignition when cooling areas with flammable or explosive vapors, gases, or dust. They're designated for use in specific hazardous atmospheres as defined under Article 500 of the National Electrical Code (NEC). They can help prevent fires or explosions in chemical-processing plants, refineries, food-production facilities, and other hazardous environments. These air circulators have a totally enclosed motor to keep out dirt and dust.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
