MARATHON MOTORS

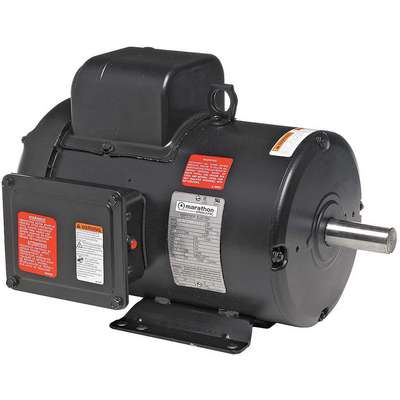

Marathon Motors 7-1/2 HP Extra High Torque Farm Duty Motor,Capacitor-Start,1750 Nameplate RPM,230 Voltage
Hover over image to magnify
#922793-8 | Pkg Qty: 1
$2,129.67 pkg | $2,129.67 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Mounting
Rigid Base
Brand
MARATHON MOTORS
Mounting Position
Horizontal
Duty
Continuous
NEMA/IEC Frame
215TZ
Duty Cycle
Continuous
Nameplate RPM
1750
Enclosure
Totally Enclosed Fan-Cooled
Overall Length
21-1/16 in.
Finish
Enamel
Pack Quantity
1
Frame
215TZ
Phase
Single
Full Load Amps
30-1/2
Rotation
CW/CCW
Hz
60
Service Factor
1.15
Insulation Class
F
Shaft Length
3-1/2 in.
Item
General Purpose Farm Duty Motor
Shaft Type
Keyed
Length Less Shaft
17-9/16 in.
Shipping Weight
155 lb.
Mfr. Part Number
215TBFW7028
Thermal Protection
Manual
Motor Design
Capacitor-Start/Run
Voltage
230 VAC
Motor Type
Capacitor-Start/Induction-Run
General
Capacitor Required
Yes
Motor Mounting Type
Rigid Base
Efficiency Group
Standard
Motor Service Factor
1.15
HP
7 1/2
Motor Shaft Design
Keyed
Includes
Condensate Drain, Shaft Slinger
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Motor Thermal Protection
Manual
Max. Ambient Temp.
40 °C
No. of Speeds
1
Motor Application
Farm Duty
Nominal Efficiency
85.5 %
Motor Bearings
Ball
RPM Range
1,701-1,800
Motor Efficiency Group
Standard Efficient
Shaft Dia.
1 1/8 in
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Standards
CSA Certified, UL Recognized
Motor Frame Material
Steel
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Mounting Position
Horizontal
Product Description
Extra-high-torque farm-duty AC motors have up to 400% starting torque for extremely hard-starting applications and can start under full-load conditions in powering conveyors, silo unloaders, barn cleaners, compressors, and manure pumps. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
