THOMAS

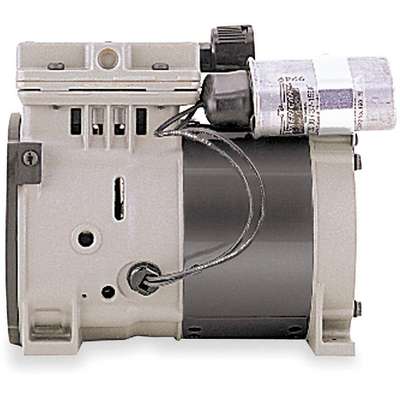

1/3 HP Piston Air Compressor/Vacuum Pump, 115VAC, 100/100 Max. PSI Cont./Int.
Hover over image to magnify
#922773 | Pkg Qty: 1
$523.66 pkg | $523.66 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
(F)NPT Inlet
1/4 in.
Maximum PSI Cont./Int.
100/100
(F)NPT Outlet
1/4 in.
Maximum Vacuum
27.6 in. Hg
Air Consumption
scfm
Mfr. Part Number
688CE44
Brand
THOMAS
Number of Cylinders
1
Cylinder Material
Aluminum
Overall Height
6-4/5 in.
Cylinders
1
Overall Length
8 in.
Finish
Gray
Overall Width
5-3/8 in.
Free Air CFM @ 0 PSI
1.6
Package Quantity
1
Free Air CFM @ 10 In. HG
0.90 in.
Phase
1
Free Air CFM @ 50 PSI
1.13
RPM
1750
Free Air CFM @ 90 PSI
0.84
Rating
Continuous Duty
Full Load Amps
3.6
Shipping Weight
12.75 lb.
Horsepower
1/3
Type
Piston Air
Hz
60
Valve
Corrosion Resistant Sandwich
Item
Piston Air Compressor/Vacuum Pump
Voltage
115 VAC
Lubrication Type
Oil-Less
Width
5-3/8 in.
General
Air Tank Style
Tankless
Maximum Continuous Pressure
100 psi
Compressor Pump Style
Rocking
Maximum Intermittent Pressure
100 psi
Free Air CFM @ 0 In. Hg
1.6
Maximum Pressure Cont/Int
100 psi / 100 psi
Free Air CFM @ 100 PSI
0.76
Output Power
0.333 hp
Free Air CFM @ 20 In. Hg
0.33
Piston Type
WOB-L
Free Air CFM @ 20 PSI
1.37
Sound Rating
63 dBA @ 60 psi
Free Air Flow Rate
1.6 cfm
Standards
UL, CSA
HP
1/3 hp
Product Description
Unit features rugged flexible piston cup and shaded-pole motor with high-torque start windings. Corrosion-resistant sandwich valve stops foreign particles from lodging on valve seats. Aluminum cylinder heads and pistons.
- Continuous-duty rated
- Quiet-running
