RIETSCHLE THOMAS

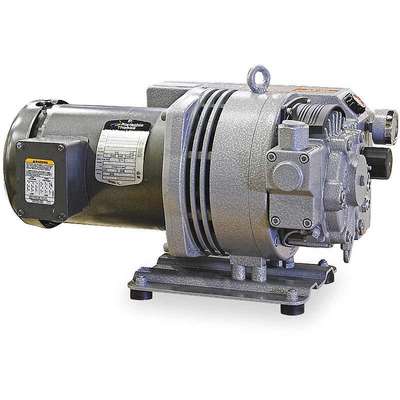

Vacuum Pump: 1 1/2 hp, 3 Phase, 230/460V AC, 17.7 cfm Free Air Displacement
Hover over image to magnify
#922747-8 | Pkg Qty: 1
$5,920.93 pkg | $5,920.93 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Oil Capacity
32 oz.
Amps AC
4.0/2.0
Overall Height
10-1/16 in.
Brand
RIETSCHLE THOMAS
Overall Length
21-1/4 in.
Displacement
18.0 CFM
Overall Width
13-1/8 in.
Filter
Fine Mesh
Package Quantity
1
Finish
Silver/Gray Metallic
Phase
3
Horsepower
1-1/2
Shipping Weight
128 lb.
Item
Vacuum Pump
Type
Medium Range
Length
19-3/8 in.
Voltage
230/460
Maximum dBA
59
Width
13-1/8 in.
Mfr. Part Number
VCE-25
General
Application
for Vacuum Packaging, Vacuum Chucking, Die Casting, Vacuum Thermoforming and Material Handling
Free Air CFM @ 20 Vacuum
5.00 in. Hg
Ballast
Gas
Free Air Displacement
17.7 cfm
Compressor Oil Capacity
32 oz
HP
1 1/2 hp
Displacement (CFM)
20.0
Includes
Filter, Oil, Oil Separator, Vacuum Non-Return Valve
End Vacuum
29.60 in. Hg
Max Operating Pressure
29.63 in Hg
Fluid Compatibility
Oil
Maximum Discharge Pressure
10 mbar
Free Air CFM @ 0 Vacuum
17.7 in. Hg
NPT Inlet
3/4 in.
Free Air CFM @ 0 Vacuum (in Hg)
17.7
Outlet Hose/Tube OD
1/2 in
Free Air CFM @ 20 Vac (in Hg)
5.00
Output Power
1.5 hp
Product Description
Lubricated Rotary Vane Vacuum Pumps
- TEFC motors for continuous duty Oil sight glass
- Single-stage, oil-flooded units are direct driven. Oil-free discharge through large droplet separation followed by oil mist filters. Gas ballast. Also include fine mesh filter, vacuum nonreturn valve, and initial fill of oil.
