VICTOR THERMAL DYNAMICS

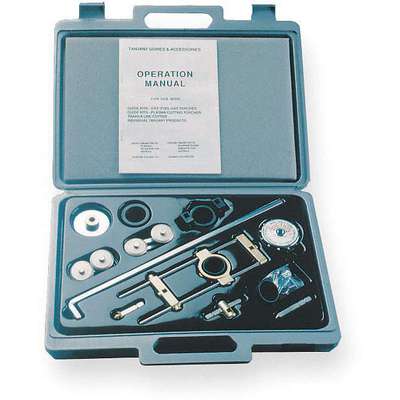

Victor Thermal Dynamics Cut Guide Kit, For Straight Line Cutting
Hover over image to magnify
#922746-3 | Pkg Qty: 1
$502.70 pkg | $502.70 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
VICTOR THERMAL DYNAMICS
Mfr. Part Number
7-8910
For Plasma Torch Series
SL100, SL60
Package Quantity
1
Function
For Straight Line, Circle Cutting and Beveling
Shipping Weight
4.1 lb.
Item
Cutting Guide Kit
General
Application
Attaches to Torch
Includes
Carrying Case, Circle Cutting Guide Kit 2UPZ6, Magnet Pivot, Radius Roller Cutting Guide Kit 2UPZ7, Suction Pivot
Cutting Configuration
Cutting Guide Kit
Maximum Hole Diameter
41 1/2 in
Cutting Guide Type
Bevelling, Circle Cutting, Straight Line Cutting
Minimum Hole Diameter
2 1/8 in
For Plasma Torch Model
7-5200, 7-5201, 7-5202, 7-5203, 7-5204, 7-5205, 7-5206, 7-5208, 7-5209, 7-5210, 7-5213, 7-5214, 7-5215, 7-5216, 7-5260, 7-5261, 7-5262, 7-5263, 7-5264, 7-5265, 7-5604, 7-5605
Product Description
Cutting Guides and Torch Accessories
- No. 2UPZ6 cuts circles from 2-1/8" to 27-3/4". Part Number: 2UPZ7 cuts circles from 3" to 28-3/4" and has roller guide to improve straight line cutting. Part Number: 2UPZ8 includes both of the above plus magnet base and suction cup. Part Number: 2UPZ9 is for straight line or bevel cutting. Part Number: 2UPX4 includes calibrated protractor and triple-jointed marking arm with holder. Part Number: 2UPX5 has 4" Y-type head, adjustable dial set level, and manual centering pin. Part Number: 2UPX6 features 30-lb. cast-in magnets and provides strong, durable straight edge. Part Number: 2UPY4 kit includes pipe marker, centering head, magnetic level, radius marker, soapstone, and holder in a lockable metal case.
Item Barcode
Cut Guide Kit,For Straight
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2UPZ8 | Cut Guide Kit,For |
 | UNSPSC CODES | 23271702 | |
 | VMRS (ATA) CODES | 053-006-009 | Cut Guide Kit,For |
