CANARM

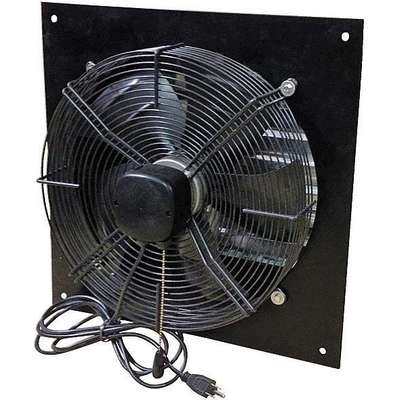

Canarm 1/12 HP 12"-Dia. 115VACV Shutter Mount Exhaust Fan, 14" Square Opening Required
Hover over image to magnify
#922718-3 | Pkg Qty: 1
$255.52 pkg | $255.52 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearing Type
Sealed Ball
Motor HP
1/12
Blade Diameter
12 in.
Motor Type
Outside Rotor Motor
Blade Material
Steel
Number of Blades
5
Brand
CANARM
Package Quantity
1
Height
16-7/8 in.
Phase
1
Item
Shutter Mount Exhaust Fan
Shipping Weight
18.2 lb.
Mfr. Part Number
XFS12
Voltage
115 VAC
Motor Enclosure
Totally Enclosed
Width
16-7/8 in.
General
Assembled
Fully Assembled
Maximum Ambient Operating Temperature
194 Degrees F
Exhaust Airflow @ 0.000 in SP
1,100 cfm
Maximum Exhaust Airflow @ 0.000 in SP
0 to 2000 cfm
Exhaust Airflow @ 0.100 in SP
1,100 cfm
Maximum Noise Level
8 sones
Exhaust Airflow @ 0.125 in SP
1,100 cfm
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 9.0 sones
Fan Style
Shutter-Mounted
Motor Enclosure Design
Totally Enclosed Air Over (TEAO)
Fan Voltage
115V AC
Motor Horsepower
1/12 hp
For Cut-Out Height
14 in
Motor Speed
1,600 RPM
For Cut-Out Length
14 in
Nameplate Voltage
115V AC
For Cut-Out Width
14 in
Noise Level @ 0.000 in SP @ 5 ft
8 sones
For Maximum Wall Thickness
5 in
Noise Level @ 0.100 in SP @ 5 ft
8 sones
For Minimum Wall Thickness
5 in
Nominal Voltage
115V AC
Full Load Current
0.8 A
Number of Fans
1
Guard Finish
Powder Coated
Speed Controllable
Yes
Guard Type
Intake
Square Opening Required
10-1/2 to 20 in
Includes
Power Cord with 115V 3 Prong Plug, Shutter, Wire Guard
Supply Airflow @ 0.000 in SP
1,100 cfm
Includes Motor
Yes
Vent Design
Ductless
Manufacturer Warranty Length
1 yr
Ventilation Type
Exhaust
Maximum Airflow
1,100 cfm
Product Description
Provides reliable, quiet, maintenance-free operation and is ideal for commercial applications. Shutters open automatically when the fan starts up and close when the fan stops. Features thermally-protected motor and aluminum shutters with tie bar to maximize airflow. Shipped fully assembled.
