RACO

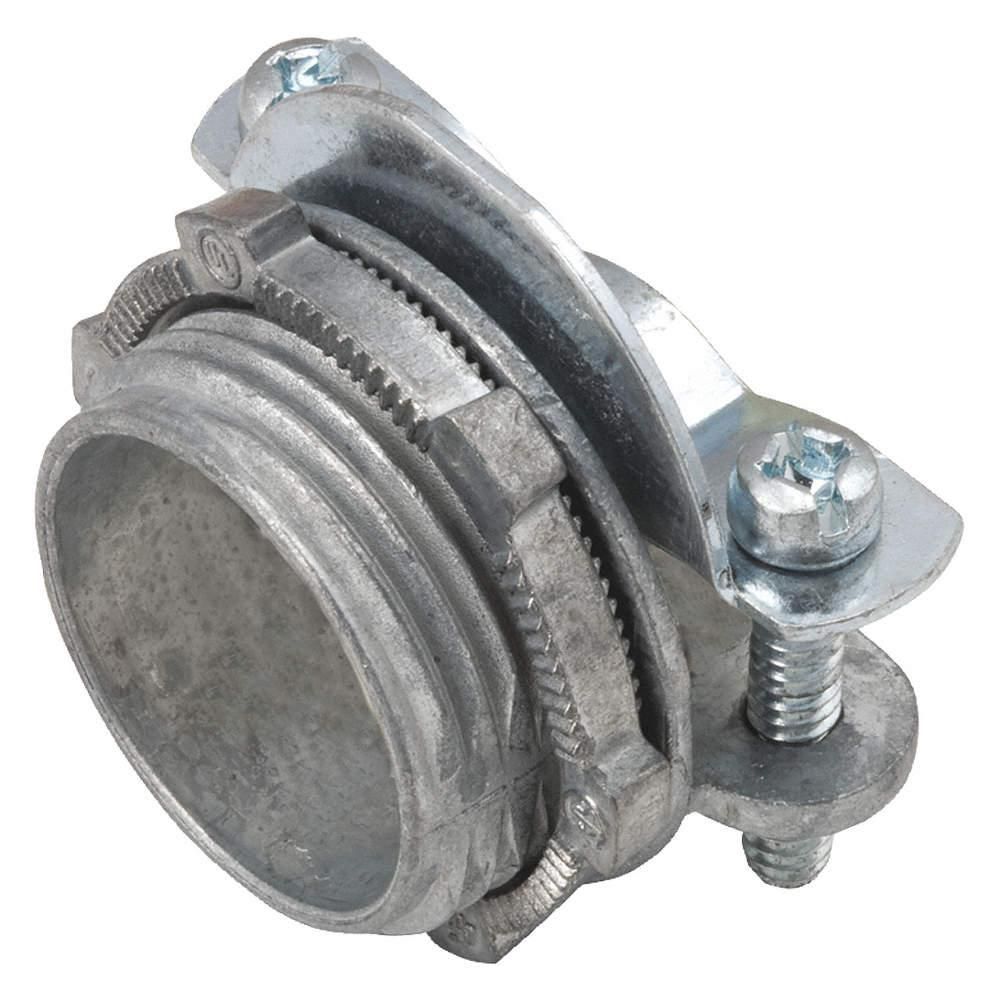

Raco Straight Nonmetallic Sheath Cable Connector, Die Cast Zinc, 3/4" MNPT Box Connection
Hover over image to magnify
#922709-1 | Pkg Qty: 1
$2.90 pkg | $2.90 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Box Connection
3/4 in. MNPT
Mfr. Part Number
2863
Brand
RACO
Overall Height
1-1/8 in.
Conduit Size
3/4 in.
Overall Length
15/16 in.
Connection Type
Clamp
Overall Width
1-11/16 in.
Connector Style
Straight
Pack Quantity
1
Insulated
No
Shipping Weight
.07 lb.
Item
NMSC Connector
Sub-Category
Connector
Knockout Size
3/4 in.
Thread Type
NPSM
Material
Die Cast Zinc
Trade Size
3/4 in.
General
Cable Clamping Method
(2) Screws
Includes
Clamp
Conduit Sub-Category
Connector
Material - Cable Connector
Die Cast Zinc
For Maximum Cable OD
3.26 mm
Standards
E195971, UL 514B, File E195972
For Minimum Cable OD
2.05 mm
Style - Connector
Straight
For Use With
Non-Metallic Sheathed Cable
Use With - Nonmetallic Building Cable
(1) 10/3, (1) 6/3, Round Cable: (1) 6/2
Product Description
Featuring die-cast zinc plating, this Raco® 2-Screw NMSC Connector is used to connect NM sheathed and oval type SE or USE cable to a box enclosure. The saddle has an extra lip to close the unused part of the connector opening.
Item Barcode
Nmsc Connector,15/16" L,3/4"
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 52AX70 | NMSC Connector,15/ |
 | UNSPSC CODES | 39121414 | |
 | VMRS (ATA) CODES | 053-006-009 | NMSC Connector,15/ |
