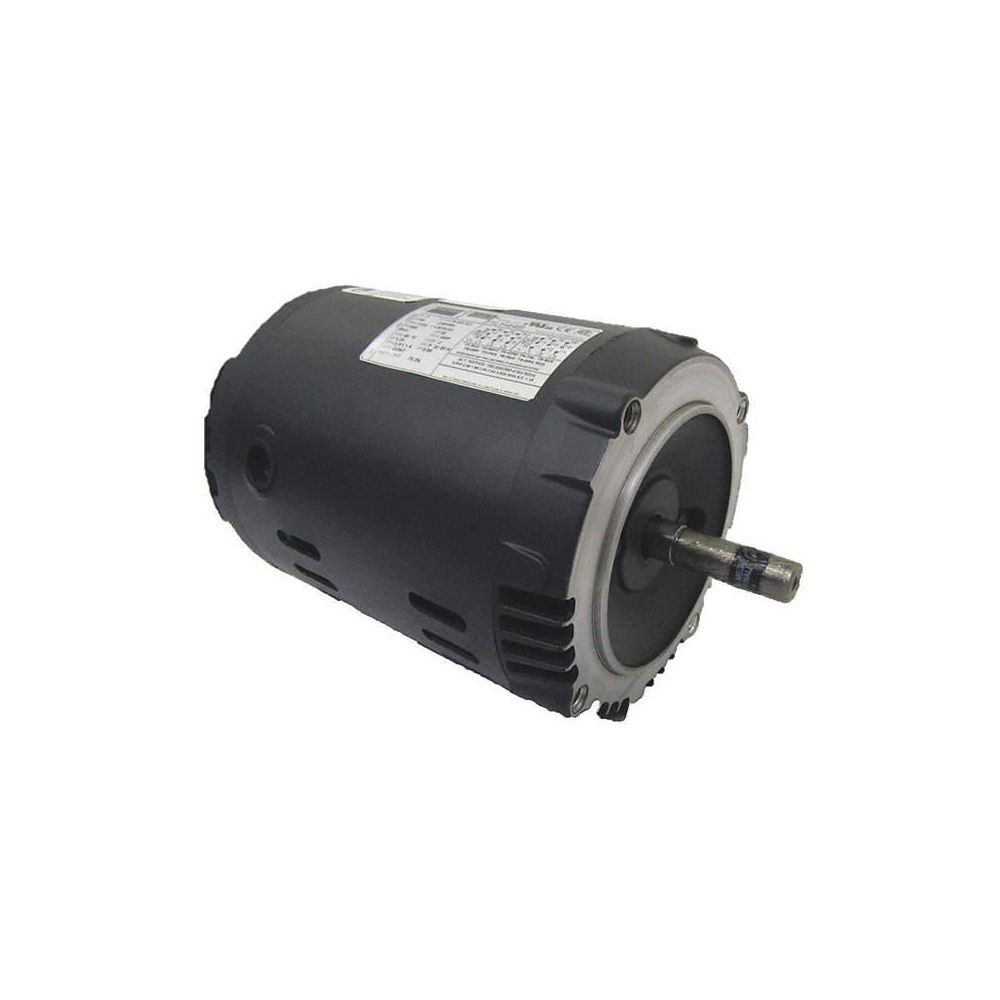

Dayton General Purpose Motor, 1/2 HP, 3-Phase, Nameplate RPM 1,155, Voltage 230/460V AC, 56C Frame

Name: Dayton General Purpose Motor, 1/2 HP, 3-Phase, Nameplate RPM 1,155, Voltage 230/460V AC, 56C Frame
Brand: DAYTON
SKU: 9227084
Price: 236.11 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#922708-4Pkg Qty: 1

$236.11 pkg | $236.11 ea

In Stock

Shipping to 43085

Expected to arrive Tue. Mar 25.

Technical Specifications

Key Specifications

Amperage

2.19-1.98/0.992 A

Motor Design

3-Phase

Bearings

Ball

Motor Type

3-Phase

Brand

DAYTON

Mounting

Face

Duty

Continuous

Mounting Position

Horizontal

Duty Cycle

Continuous

Nameplate RPM

1155

Enclosure

Open Dripproof

Overall Length

10-11/16 in.

Footnotes

1516

Package Quantity

Frame

56C

Phase

Three

Full Load Amps

2.00/0.99

Rotation

CW/CCW

Service Factor

1.15

Insulation Class

Shaft Length

1-7/8 in.

Item

General Purpose Motor

Shaft Type

Keyed

Length Less Shaft

8-3/4 in.

Shipping Weight

22.17 lb.

Mfr. Part Number

31LH44

Thermal Protection

None

Mfr. Warranty Length

1 yr.

Voltage

230/460 VAC

General

Efficiency Group

NEMA Premium Efficient

Motor Frame Material

Rolled Steel

Green Certification or Other Recognition

NEMA Premium® Rated

Motor Service Factor

1.25

Green Environmental

Product Contributes To Reducing Energy Consumption

No. of Speeds

1/2

Nominal Efficiency

72 %

Includes

MIMI 8S470A & Shaft Key

RPM Group

1101-1200

Inverter Rated

Yes

RPM Range

1,101-1,200

Max. Ambient Temp.

40 °C

Shaft Dia.

5/8 in

Motor Application

General Application

Standards

CE, CSA, UL

Motor Efficiency Group

Premium Efficient

Voltage Compatibility

200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC

Product Description

NEMA 56 frame three-phase general purpose AC motors have a standard 5/8" diameter, 1-7/8" length shaft whose center is 3-1/2" above the base mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 56HZ or 56C. The letter “H” indicates that the frame has a set of mounting holes at 3" and 5", “Z” indicates that the frame has a nonstandard shaft, and “C” indicates that the motor can be face mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).
