REDHAT

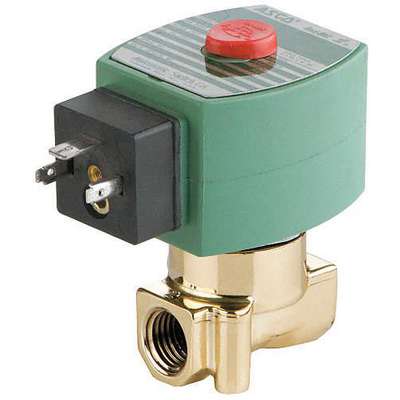

Solenoid Valve: 1/4 in Pipe Size - Valves, 120V AC, 0 psi Min. Op Pressure Differential, Brass, F
Hover over image to magnify
#922691 | Pkg Qty: 1
$107.32 pkg | $107.32 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CSA certified, UL listed, FM approved and meets applicable CE directives
NEMA Rating
1, 2, 3, 3S, 4, 4X
Body Material
Brass
Overall Height
3-1/8 in.
Brand
REDHAT
Overall Length
1-9/16 in.
Coefficient of Volume
0.52
Overall Width
1-15/16 in.
Configuration
Normally Closed
Package Quantity
1
Electrical Connections
DIN
Pipe Size
1/4 in.
Hz
60
Shipping Weight
1.31 lb.
Item
Solenoid Valve
Valve Design
2-Way/2-Position
Maximum Fluid Temperature
180°F
Voltage
120 VAC
Media Type
Air/Inert Gas, Light Oil and Water
orifice Dia._spec_s
5/32 in.
Mfr. Part Number
SC8262H202
General
Body Material - Valves
Brass
Media - Valves
Air, Inert Gases, Light Oil, Water
Center Line Pipe Center Size
2 13/16 in
Min. Operating Pressure Differential
0 psi
Coil Enclosure
Watertight No Junction Box
Pipe Size - Valves
1/4 in
Coil Insulation Class
F
Seal Material - Valves
NBR
Environmental Rating - Valves
Indoor, Outdoor
Solenoid Valve Product Group
Solenoid Valve
Max. Operating Pressure Differential Air/Inert Gas
210 psi
Valve Configuration
Normally Closed
Max. Operating Pressure Differential Light Oil
145 psi
Valve Ways and Positions
2-Way/2-Position
Max. Operating Pressure Differential Water
200 psi
Product Description
This solenoid valve is suitable for for liquid, corrosive, and air/inert gas service in applications such as car washes, air compressors, pumps, laundry equipment, and industrial water control.
Expertly Selected Product Pairings
Item Barcode
Solenoid Valve,Brass,Nc,Air,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6WTU7 | Solenoid Valve,Brass, |
 | UNSPSC CODES | 40141605 | |
 | VMRS (ATA) CODES | 053-006-009 | Solenoid Valve,Brass, |
