PHILIPS ADVANCE
Philips Advance High Pressure Sodium HID Ballast Kit, 70 Max. Lamp Watts, 120/208/240/277 V, Pulse Ballast Start Typ
Hover over image to magnify
#922690-6 | Pkg Qty: 1
$127.22 pkg | $127.22 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ANSI Code
S62
Length
3-15/16 in.
Brand
PHILIPS ADVANCE
Mfr. Part Number
71A7971-001D
Height
2-7/8 in.
Number of Lamps
1
Hz
60
Package Quantity
1
Input Watts
70 in.
Shipping Weight
5.6 lb.
Insulation Class
H
Start Type
Pulse
Item
HID Ballast Kit
Voltage
120/208/240/277 V
Lamp Type
High Pressure Sodium
Width
3-1/8 in.
Lamp Watts
70 W
General
Ballast Bulb Type
High Pressure Sodium
Min. Starting Temp.
-40 Degrees F
Ballast Factor
1
Number of Bulbs Supported
1
Ballast Start Type
Pulse
Operating Amps @ 120V
0.81 A
Brand and Series
Advance
Operating Amps @ 208V
0.47 A

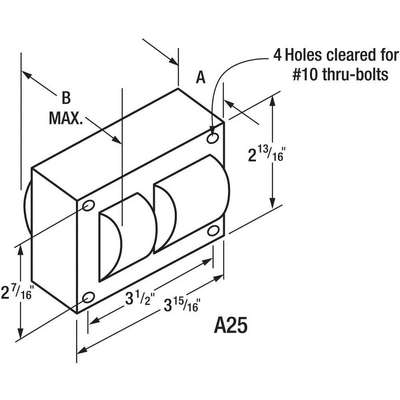

Figure Number
A25
Operating Amps @ 240V
0.4 A
Footnotes
6
Operating Amps @ 277V
0.35 A
Includes
Capacitor, Coil, Core, Hardware, Ignitor, Mounting Bracket
Operating Amps @ 480V
0.4 A
Max. Bulb Watts
70 W
Starter Required
Yes
Min. Bulb Watts
70 W
Product Description
High-pressure-sodium ballast kits include parts for replacing a ballast and its coordinating components in lighting fixtures that use high-pressure-sodium HID bulbs.
Expertly Selected Product Pairings
Item Barcode
Hid Bal Kit,High Pressure
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1A975 | HID BAL Kit, High |
 | UNSPSC CODES | 39111801 | |
 | VMRS (ATA) CODES | 053-006-009 | HID BAL Kit, High |
