DAYTON

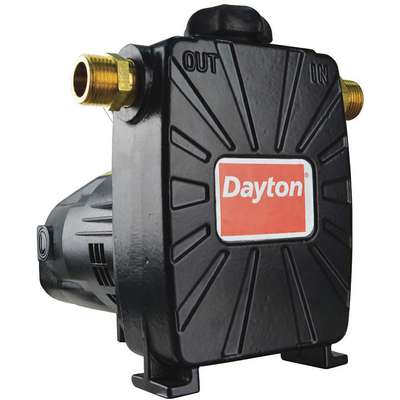

1/2 HP Utility Pump, 115 Voltage, 3/4" Inlet, 3/4"Outlet
Hover over image to magnify
#922690-4 | Pkg Qty: 1
$364.75 pkg | $364.75 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CSA
Item
Utility Pump
Amps
8 A
Length
13-5/8 in.
Bearing Type
Ball
Maximum Case Pressure
100 psi
Best Efficiency GPM @ Head
10.6 gpm @ 52 ft.
Maximum Fluid Viscosity
31 SSU
Best Efficiency Range GPM @ Head
7.90 to 14.30 gpm @ 39.30 to 65.60 ft.
Maximum Head
118 ft.
Brand
DAYTON
Maximum Liquid Temperature
120° F
Cord
10 ft.
Maximum Pressure
51 psi
Duty
Intermittent
Maximum Specific Gravity
1
GPM of Water @ 1 Ft. of Head
23.7
Mfr. Part Number
33RW83
GPM of Water @ 10 Ft. of Head
21.6
Mfr. Warranty Length
1 yr.
GPM of Water @ 15 Ft. of Head
20
Motor Enclosure
ODP
GPM of Water @ 20 Ft. of Head
19
Motor Type
AC/DC Brush
GPM of Water @ 25 Ft. of Head
18-1/2
Outlet
3/4 in.
GPM of Water @ 30 Ft. of Head
17.4
Package Quantity
1
GPM of Water @ 35 Ft. of Head
15.8
Phase
1
GPM of Water @ 40 Ft. of Head
14.2
RPM
8000
GPM of Water @ 5 Ft. of Head
22.7
Screw Material
304 Stainless Steel
GPM of Water @ 50 Ft. of Head
11.9
Seal Application
Nonflammable and Nonabrasive Liquids Compatible with Seal Component Materials
GPM of Water @ 60 Ft. of Head
9.2
Seal Material
Carbon, Ceramic
GPM of Water @ 70 Ft. of Head
6.9
Seal Type
Mechanical
GPM of Water @ 80 Ft. of Head
5
Shaft Material
410 Stainless Steel
GPM of Water @ 90 Ft. of Head
3
Shipping Weight
17.2 lb.
Height
7-3/4 in.
Suction Lift
20 ft.
Horsepower
1/2
Type
Portable
Housing Material
Polypropylene, Fiberglass
Voltage
115
Hz
60
Volute Material
Cast Iron
Impeller Material
Nylon, Fiberglass
Wetted Materials
Cast Iron, Nylon, Fiberglass, Stainless Steel, Carbon, Ceramic
Impeller Type
Semi-Open
Width
6-1/4 in.
Inlet
3/4 in.
General
Application
Emptying or Filling Tanks and Drawing Water From Lakes and Ponds, Transfer Pump for Such Applications As Emptying Water Containers, Swimming Pools, Livestock Tanks, Boats
GPH of Water @ 15 PSI
950
Best Efficiency Flow
10.7 gpm to 15.8
GPH of Water @ 20 PSI
745
Best Efficiency Head
39 to 66 ft
GPH of Water @ 25 PSI
570
Compatible Discharge Pipe Size
3/4 in
GPH of Water @ 30 PSI
427
Compatible Intake Pipe Size
3/4 in
GPH of Water @ 35 PSI
270
Flow Rate @ 1 ft of Head (Maximum)
23.7 gpm
GPH of Water @ 40 PSI
198
Flow Rate @ 10 ft of Head (Maximum)
21.7 gpm
GPH of Water @ 5 PSI
1250
Flow Rate @ 100 ft of Head (Maximum)
3.1 gpm
Impeller Design
Semi-Open
Flow Rate @ 15 ft of Head (Maximum)
20.4 gpm
Includes
(1) Suction Strainer with Female 3/4 GTH, (2) 3/4 in Garden Hose Adapters, (2) Replacement Brushes
Flow Rate @ 20 ft of Head (Maximum)
19.5 gpm
Intake Type
NPT
Flow Rate @ 30 ft of Head (Maximum)
17.7 gpm
Intake and Discharge Size
3/4 in , 3/4 in
Flow Rate @ 40 ft of Head (Maximum)
15.8 gpm
Manufacturer Warranty Length
1 yr
Flow Rate @ 5 ft of Head (Maximum)
22.5 gpm
Maximum Feet of Head
118 ft
Flow Rate @ 50 ft of Head (Maximum)
13.7 gpm
Maximum Media Temperature
120 Degrees F
Flow Rate @ 60 ft of Head (Maximum)
11.6 gpm
Nameplate Voltage
115V AC
Flow Rate @ 70 ft of Head (Maximum)
6.9 gpm
Pump Housing Material
Cast Iron
Flow Rate @ 80 ft of Head (Maximum)
7.5 gpm
Shut Off Pressure (Maximum)
51 psi
Flow Rate @ 90 ft of Head (Maximum)
3 gpm
Specific Gravity (Maximum)
1
For Use With
Clean Water
Suction Lift (Maximum)
15 ft
GPH of Water @ 10 PSI
1140
Wetted Material
Carbon, Cast Iron, Ceramic, Fiberglass, Nylon, Stainless Steel
Product Description
Compact and portable, this DAYTON self-priming utility pump can be used for a number of different applications including emptying tanks, swimming pools, boats, water heaters, and large basins.
- On/Off switch in the rear of motor for added convenience
- Includes a suction strainer
