PNEUMADYNE INC

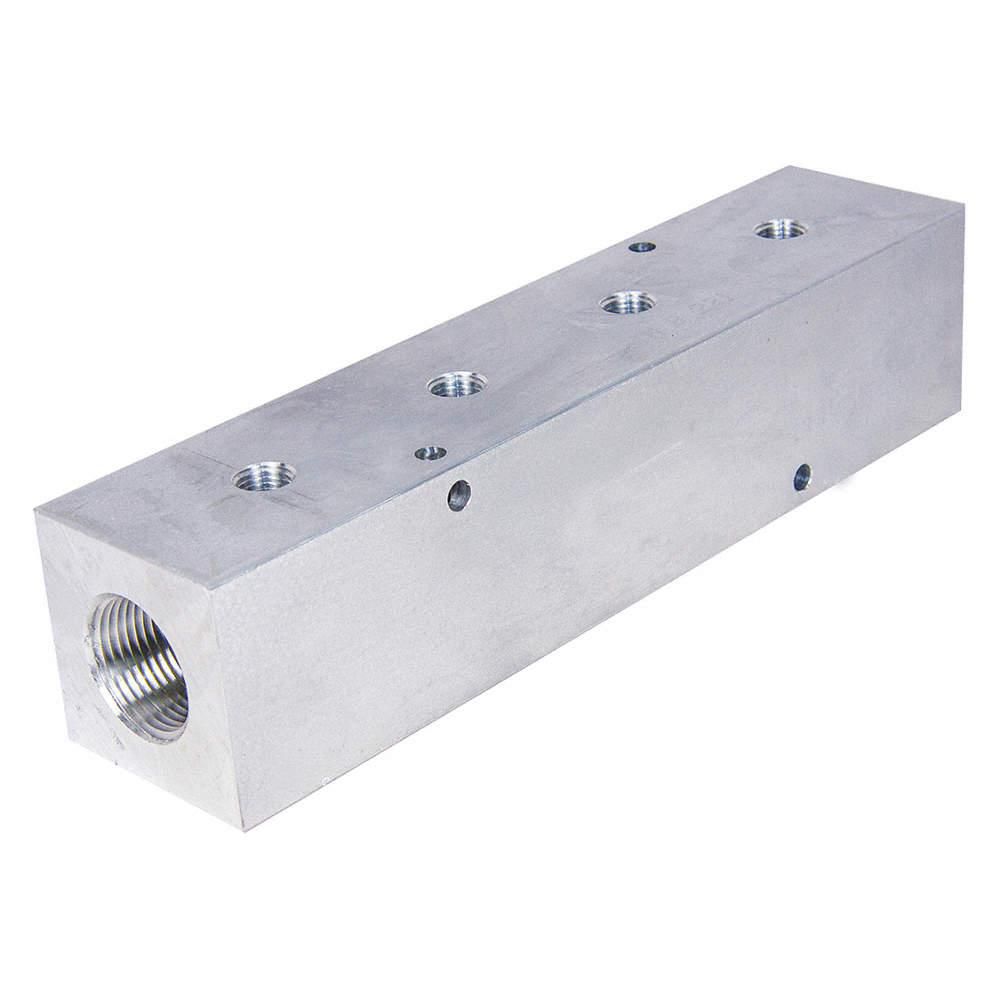

Manifold, 1" Inlet Size, 1/2"Outlet Size, NPT, Aluminum, 9-3/4"Overall Length

Hover over image to magnify
Manifold,Aluminum,4 Outlets,9-
Manifold,Aluminum,4 Outlets,9-
Double tap image to magnify
Manifold,Aluminum,4 Outlets,9-
Manifold,Aluminum,4 Outlets,9-

#922682-5Pkg Qty: 1

$95.63 pkg | $95.63 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Body Material
Aluminum
Number of Outlets
4
Brand
PNEUMADYNE INC
Outlet Size
1/2 in.
Connection Type
NPT
Overall Height
2-1/4 in.
Inlet Size
1 in.
Overall Length
9-3/4 in.
Item
Manifold
Overall Width
2-1/4 in.
Maximum Pressure
3000 psi
Package Quantity
1
Mfr. Part Number
M40-500-4
Shipping Weight
3.67 lb.
Mounting Hole Size
0.26 in.
Temperature Range (Deg. F)
-10 to 200 deg. F
Number of Inlets
2
General
Dimensions H x W x L
2.25 in x 2.25 in x 9.75 in
Maximum Operating Pressure
3,000 psi
Flow Direction
Inline
Maximum Operating Temperature
200 Degrees F
For Fluid Type
Fluid, Gas
Minimum Operating Temperature
-10 Degrees F
For Potable Water Use
Yes
Mounting Hole Diameter
0.26 in
Inlet Connection
1 in Female NPT
Outlet Connection
1/2 in Female NPT
Inlet Connection Gender
Female
Outlet Connection Gender
Female
Manifold Material Grade
6061
Outlet Spacing
2 1/4 in
Manifold Shape
Rectangle
Resistance Properties
Corrosion Resistant
Material
6061 Aluminum
Temperature Range
-10 Degrees F - 200 Degrees F

Product Description

Ideal as a convenient junction point for lower pressure applications using air, water, or other compatible media, this PNEUMADYNE INC manifold is easy to install. Just thread fittings into the ports to produce an orderly method of supplying multiple lines from a single source. Model comes with 2 sets of mounting holes to ease installation.
