DAYTON

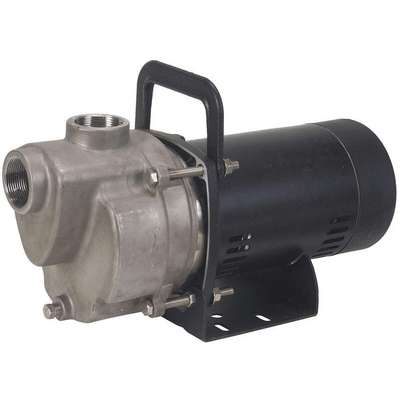

1/3-HP Self Priming Centrifugal Pump, 32 ft. Max. Head, 3/8" Max. Dia. Solids, 304 Stainless Steel
Hover over image to magnify
#922663-7 | Pkg Qty: 1
$881.82 pkg | $881.82 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
c CSA us
Maximum Liquid Temperature
180°F
Amps
7.0/3.5 A
Maximum Pressure
13.9 psi
Bearing Type
Ball
Maximum Specific Gravity
1
Best Efficiency GPM @ Head
17 gpm @ 20 ft.
Mfr. Part Number
6GPG3
Best Efficiency Range GPM @ Head
12 to 33 gpm @ 25 to 15 ft.
Mfr. Warranty Length
1 yr.
Brand
DAYTON
Minimum GPM @ Head
2 gpm @ 31 ft.
Drain Plug
Easily Accessible
Motor Design
Capacitor-Start/Run
Duty
Continuous
Motor Enclosure
ODP
Frame
56J
Motor RPM
3450
GPM @ 10 PSI
14.1
Motor Type
Capacitor-Start, Capacitor-Run
GPM of Water @ 10 Ft. of Head
33
NEMA/IEC Frame
56J
GPM of Water @ 15 Ft. of Head
21
Outlet
1-1/2 in. NPT
GPM of Water @ 2 Ft. of Head
37
Outlet Size
1-1/2 in. NPT
GPM of Water @ 20 Ft. of Head
17
Package Quantity
1
GPM of Water @ 25 Ft. of Head
12
Phase
1
GPM of Water @ 30 Ft. of Head
6
Port Rotation
4 Position Increments
GPM of Water @ 5 Ft. of Head
35
RPM
3450
Height
10 in.
Screw Material
Stainless Steel
Horsepower
1/3
Seal Application
Non-Flammable Liquids Compatible with Pump Components
Housing Material
Stainless Steel
Seal Material
304 Stainless Steel, Viton, Carbon, Ceramic
Hz
60
Seal Type
Mechanical
Impeller Material
Stainless Steel
Self-Priming
Yes
Impeller Type
Semi Open
Service Factor
1.35
Inlet
1-1/2 in. NPT
Shaft Material
Stainless Steel
Item
Centrifugal Pump
Shipping Weight
33.6 lb.
Length
16-11/16 in.
Suction Lift
25 ft.
Maximum Case Pressure
85 psi
Type
Chemical Transfer, Self Priming
Maximum Diameter Solids
3/8 in.
Voltage
115/230 VAC
Maximum Fluid Viscosity
31 SSU
Volute Material
Stainless Steel
Maximum GPM @ Head
36 gpm @ 2 ft.
Wetted Materials
304 Stainless Steel, Viton, Carbon, Ceramic
Maximum Head
32 ft.
Width
7-5/16 in.
General
Application
For General Purpose Chemical Transfer From Drums or Storage Tanks.
Includes
Manual
Best Efficiency Flow
36 gpm
Intake Type
NPT
Best Efficiency Head
15 to 25 ft
Intake and Discharge Size
1 1/2 in , 1 1/2 in
Compatible Discharge Pipe Size
1 1/2 in
Maximum Feet of Head
32 ft
Compatible Intake Pipe Size
1 1/2 in
Minimum Media Temperature
40 Degrees F
Compatible with Media Type
Non-Abrasive Liquids, Non-Flammable Liquids
Motor Enclosure Type
ODP
Discharge Rotation
90 Degrees Increments
Motor Frame Designation
56J
Discharge Type
NPT
Nameplate Voltage
115/230V AC
Feet of Head (Minimum)
2 ft
Nominal Voltage
115/230V AC
Flow Rate @ 10 ft of Head (Maximum)
33 gpm
Pump Housing Material
Stainless Steel
Flow Rate @ 15 ft of Head (Maximum)
21 gpm
Shut Off Pressure (Maximum)
13.9 psi
Flow Rate @ 20 ft of Head (Maximum)
17 gpm
Solid Diameter (Maximum)
0.38 in
Flow Rate @ 30 ft of Head (Maximum)
6 gpm
Specific Gravity (Maximum)
1
Flow Rate @ 5 ft of Head (Maximum)
35 gpm
Suction Lift (Maximum)
25 ft
For Use With
Non-Flammable/Non-Abrasive Liquids Compatible with Pump Wetted Materials
Wetted Material
304 Stainless Steel, Carbon, Ceramic, Viton
Impeller Design
Semi-Open
Product Description
This manual pump is designed to transfer nonflammable, nonabrasive liquids from storage tanks and/or large reservoirs. The semi-open impeller resists clogging. The discharge rotates in 90° increments. The drain plug is easily accessible.
