ZOELLER

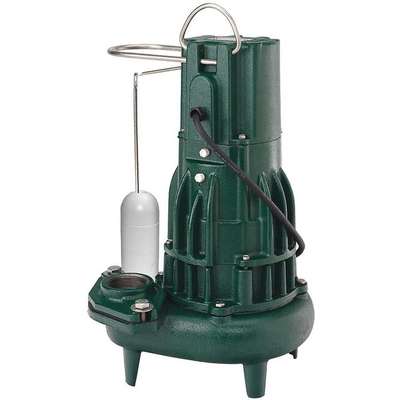

1/2 HP Automatic Submersible Sewage Pump, 115 Voltage, 63 GPM of Water @ 15 Ft. of Head

Hover over image to magnify
Submersible Sewage Pump,1/2HP,
PI_Asset_969152
Submersible Sewage Pump,1/2HP,
PI_Asset_969152
1/2 HP Automatic Submersible Sewage Pump, 115 Voltage, 63 GPM of Water @ 15 Ft. of Head Video

#922661-8 | Pkg Qty: 1

$1,506.88 pkg | $1,506.88 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
UL Listed, CSA Certified
Maximum Temperature (Deg. F)
130
Amps
10.3 A
Mfr. Part Number
M282
Base Material
Cast Iron
Mfr. Warranty Length
1 yr.
Bearing Type
Upper Sleeve/Lower Ball
Motor RPM
1725
Brand
ZOELLER
Motor Type
Hermetically-Sealed, Oil-filled
Cord Length
10 ft.
Off Point
5-1/4 in.
Diameter
13-9/16 in.
On Point
15-1/4 in.
Discharge NPT
3 in.
Package Quantity
1
GPM of Water @ 10 Ft. of Head
95
Phase
1
GPM of Water @ 15 Ft. of Head
63
Pump Body Material
Cast Iron
GPM of Water @ 20 Ft. of Head
33
Pump HP
1/2
GPM of Water @ 25 Ft. of Head
5
Pump Type
Automatic
GPM of Water @ 5 Ft. of Head
130
RPM
1725
Height
19-9/16
Shaft Material
Carbon/Ceramic
Horsepower
1/2
Shaft Seal
Carbon/Ceramic
Housing
Cast Iron
Shaft Seal Material
Carbon, Ceramic
Housing Material
Cast Iron
Shipping Weight
80 lb.
Impeller Material
Cast Iron
Switch Type
Vertical
Input Phase AC
1
Thermal Protection
Yes
Item
Submersible Sewage Pump
Top Material
Cast Iron
Maximum Diameter Solids
2 in.
Type
Automatic
Maximum Head
26 ft.
Voltage
120 VAC
Maximum Liquid Temperature
140°F
Warranty
1 yr.
General
Body Dia.
13 9/16 in
Nominal Voltage
110V AC
Discharge Dia.
3 in
Phase - Pumps
1
Discharge Gender
Female
Rated Voltage
115V AC
Discharge Standard
NPT
Shaft Seal Material - Pumps
Carbon, Ceramic
Flow Rate @ 10 Ft. of Head
96 gpm
Standards
CSA Certified
Flow Rate @ 15 Ft. of Head
64 gpm
Switch Actuation
Vertical Float
Flow Rate @ 20 Ft. of Head
34 gpm
Switch Electrical Connection
Integral
Min. Sump Pit Dia.
18 in

Product Description

These general purpose 110 to 120V sewage ejector pumps remove sewage containing solids from drains where a gravity system won't work, such as in septic systems that are below the main sewer line. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
