DAYTON

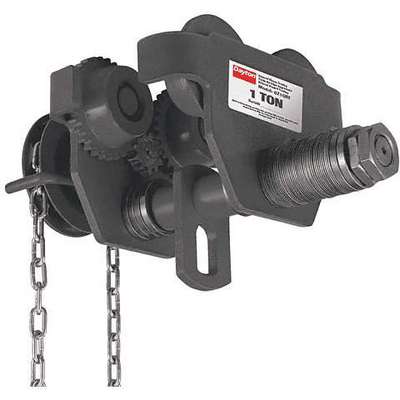

Dayton Geared Trolley, 2000 lb. Load Capacity, Fits Beam Flange W 2-1/2" to 8"

Hover over image to magnify
Geared Trolley,2000 Lb.
Geared Trolley,2000 Lb.

#922642 | Pkg Qty: 1

$402.54 pkg | $402.54 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
DAYTON
Mfr. Part Number
OZ1GBT
Fits Beam Flange Width
2-1/2 in. to 8 in.
Minimum Radius Curve
39 in.
Fits Beam Height
2-61/64 in.
Package Quantity
1
Head Room to Bail
4-29/32 in.
Shipping Weight
32.9 lb.
Item
Geared Trolley
Wheel Diameter
2-31/64 in.
Load Capacity
2000 lb.
Wheel Material
Steel
Material
Steel
General
Capacity (Tons)
1
Hand Chain
5mm
Dimension A (In.)
15.56
Head Room To Bail (In.)
1.97
Dimension B (In.)
10.24
Min. Radius (In.)
39
Dimension C (In.)
9.41
Min. Radius Curve
39 in
Dimension D (In.)
5.31
Standards
ANSI B30.10 / CE / AS 1418.2
Fits Beam Flange W
2-1/2 in to 8 in
Trolley Wheel Dia.
2 31/64 in
Fits Beam Flange W (In.)
2.52 to 8.00
Wheel Tread Dia. (In.)
2.96

Product Description

Gearing provides positive load positioning along the beam. Lightweight trolley fits most I-, S-, and W-beams. Designed with durable baked enamel paint protection and precision ball bearing wheels. Features antidrop plate and stainless steel ID tag. Individual test certificate and serial number included.

Item Barcode
9226420
Geared Trolley,2000 Lb.
 NameItemDescription
Grainger DropshipGrainger Dropship36T678Geared Trolley,2000
UNSPSC CODESUNSPSC CODES24101706
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Geared Trolley,2000
