OMRON

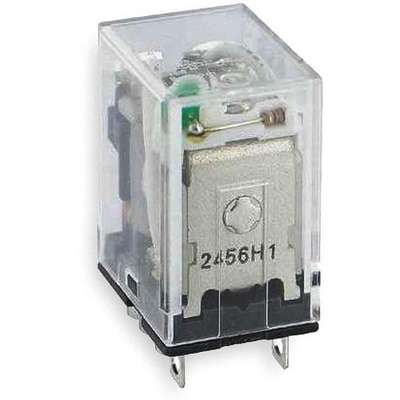

Omron 12VDC Coil Volts, General Purpose Relay, 10A @ 120VAC/10A @ 24VDC Contact Rating, Square
Hover over image to magnify
#922577-4 | Pkg Qty: 1
$15.45 pkg | $15.45 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 120 V
Mounting
Plug In
Base Type
Square
Number of Contacts
8
Body Depth
1.1 in.
Number of Pins
8
Body Height
1.42 in.
Number of Poles
2
Body Width
0.85 in.
Overall Height
1.67 in.
Brand
OMRON
Package Quantity
1
Coil VA Rating
0.9
Pins
8
Coil Volts
12 VDC
Plug-In Relay Style
General Purpose
Contact Amp Rating
7-1/2
Push To Test
No
Contact Form
DPDT
Relay Power Consumption
0.9 W
Contact Material
Silver Alloy
Resistive Contact Amp Rating
10
Contact Rating
10 A @ 120 VAC/24 VDC
Response Time
25 msec
DC Contact Rating
10 A @ 24 V
Shipping Weight
.08 lb.
Hz
50/60
Socket
Mfr. No. PTF08A-E
Inductive Contact Amp Rating
7-1/2
Socket Code
D
Input Power Consumption
0.9 W
Status Indicator
LED
Item
General Purpose Relay
Type
Plug In, LED
Mfr. Part Number
LY2N-DC12
General
AC Contact Rating - Relay
10A @ 120V
HP @ 120V
1/3 hp
Base Type - Plug In Relay
Square
Mounting - Relay
Plug In
Body Depth - Relay
1.1 in
Number of Pins - Relay
8
Body Height - Relay
1.42 in
Overall Height - Relay
1.67 in
Body Width - Relay
0.85 in
Power Consumption - Relay
0.9 W
Contact Form - Relay
DPDT
Socket Code - Relay
D
DC Contact Rating - Relay
10A @ 24V
Standards
UL508
Product Description
General Purpose Relay, Coil Volts 12V DC, AC Contact Rating - Relay 10A @ 120V, DC Contact Rating - Relay 10A @ 24V, Base Type - Plug In Relay Square, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Plug In, Socket Code - Relay D, Power Consumption - Relay 0.9 W, Contact Material Silver Alloy, Status Indicator LED, Push To Test No
Item Barcode
Plug In Relay,8 Pins,Square,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1YCN9 | Plug In Relay,8 Pins, |
 | UNSPSC CODES | 39122333 | |
 | VMRS (ATA) CODES | 053-006-009 | Plug In Relay,8 Pins, |
