SCHNEIDER ELECTRIC

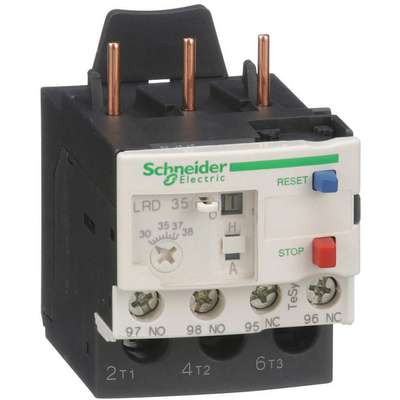

Schneider Electric Overload Relay, Trip Class: 10, Current Range: 30.0 to 38.0A, Number of Poles: 3

Hover over image to magnify
Ovrload Relay,30 To 38A,3P,
PI_Asset_1371596
Ovrload Relay,30 To 38A,3P,
PI_Asset_1371596

#922572-5 | Pkg Qty: 1

$101.66 pkg | $101.66 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
SCHNEIDER ELECTRIC
Package Quantity
1
Current Range
30.0 to 38.0A
Sensing Method
Bimetallic
Depth
2-3/4 in.
Shipping Weight
.3 lb.
Height
2-3/4 in.
Starter Type
IEC
Item
Overload Relay
Voltage
690 VAC
Mfr. Part Number
LRD35
Width
1.77 in.
Number of Poles
3
General
Body Depth - Relay
2.75 in
Overload Relay Current Range
30 to 38A
Body Height - Relay
2.75 in
Reset Type - Relay
Manual
Body Width - Relay
1.77 in
Standards
UL, CSA, ATEX D 94/9/CE, GOST
Features
Single Phase Sensitivity, Differential
Trip Class
10
For Use With
LC1D32 Contactor
Trip Class - Overload
10
Overall Height - Relay
2.76 in
Use With - Contactors and Starters
Mfr. Series LC1D32 Contactors

Product Description

TeSys™ IEC Contactors and Overload Relays For industrial motor control applications, combine a contactor with an overload relay to make a complete motor starter. Rated 600VAC. Saddle clamp terminals. DIN rail- or panel-mount. CSA and CE Certified. Overload Relays For 3-phase applications. Bimetallic elements. Class 10 trip characteristics with 1-phase sensitivity. Ambient compensated. Adjustable current range. Lockable, sealable, manual/auto reset, test trip. Mount to underside of contactor.
