ACTION PUMP

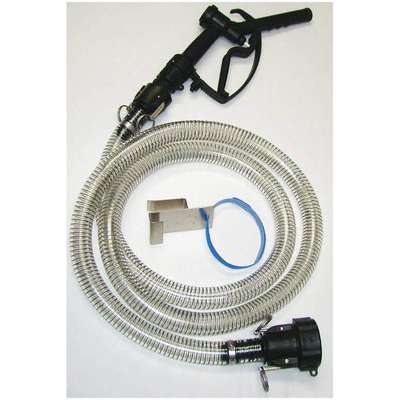

Discharge Hose Kit: 96 in Hose Lg, 85 psi Max. Working Pressure @ 70 F, Food Grade, PVC

Hover over image to magnify
Hose Kit,Dia.1 In,
Hose Kit,Dia.1 In,

#922562-6 | Pkg Qty: 1

$172.85 pkg | $172.85 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Adapter Type
2 in. Female
Material of Construction
PVC
Brand
ACTION PUMP
Mfr. Part Number
IBC-HK-8P2F
Capacity
8 gpm
Package Quantity
1
Clamp Style
Permanent
Self-Priming
Yes
Diameter
1.33
Shipping Weight
5.41 lb.
Hose Inside Diameter
1 in.
Used For
Detergents, Some Acids, Cholrines,Oils, D-limonene, Waxes, Alkalis, Water, Soaps
Item
Hose Kit
Wetted Materials
PVC, Polypropylene, Viton
Length
96 in.
General
Compatible Chemicals
Citric Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Phosphoric Acid (40% Solution), Isopropyl (Isopropanol), Methyl (Methanol), Antifreeze (Coolant), Ethylene Glycol, Glycerin, Sodium Bicarbonate (10%), Cyclohexane, Gasoline, Heptane, Kerosene, Stoddard Solvent (Mineral Spirits), Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Ethyl Acetate, Biodiesel, Formaldehyde 40%, Formaldehyde, Ammonium Hydroxide, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Potassium Hydroxide (50%), Fresh Water, Salt Water, Deionized Water, Motor Oil, Sodium Bisulfite, DEF, E85, Anhydrous Ammonia, Ammonia (Liquids), Automatic Transmission Fluid, Fertilizers, Fungicides, Herbicides, Paint, Windshield Washer Fluid
Includes Spout
Yes
Diesel Exhaust Fluid Compatible
Yes
Max. Working Pressure @ 70 F
85 psi
For Media Type
Citric Acid, Formic Acid, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Isopropanol, Methanol, Antifreeze, Ethylene Glycol, Glycerin, Sodium Bicarbonate, Cyclohexane, Gasoline, Heptane, Kerosene, Stoddard Solvent, Diesel Fuel, Hydraulic Oil, Ethyl Acetate, Biodiesel, Formaldehyde, Ammonium Hydroxide, Sodium Hydroxide, Bleach, Potassium Hydroxide (50%), Water, Motor Oil, Sodium Bisulfite, DEF, E85, Ammonia, Automatic Transmission Fluid, Fertilizers, Fungicides, Herbicides, Paint, Windshield Washer Fluid
Not Recommended Chemicals
Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Hydrazine, Lacquer Thinners, Toluene, Xylene, Methyl Chloride, Sodium Bisulfate, Trichlorethylene (50%)
Hose Fitting A Size
1 in
Nozzle Operation
Manual
Hose Fitting A Type
FNPT
Permits Use On
15, 30 And 55 Gallon Drums, Barrels And Totes
Hose Fitting B Size
1 in
Spout Connection Size
1 in
Hose Fitting B Type
M Camlock
Spout Connection Type
FNPT
Hose Inside Dia.
1 in
Spout Discharge Size
1 1/8 in
Includes
IBC, Bracket, Connectors
Temp. Range
140 Degrees F
Includes Nozzle
Yes

Product Description

Drum pump discharge hoses are flexible tubes that connect to a drum pump outlet to convey fluids being pumped out of a container. They allow fluids to be directed away from the pump outlet for safe dispensing or transferring to another container with minimal product loss. Drum pump hose makes full contact with pumped fluids, so it should be made of compatible material to prevent fluid contamination or damage to the hose. These hoses are often used with a nozzle for controlled dispensing.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9225626
Hose Kit,Dia.1 In,
 NameItemDescription
Grainger DropshipGrainger Dropship6PFL5Hose Kit,Dia. 1 In,
UNSPSC CODESUNSPSC CODES40151529
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Hose Kit,Dia. 1 In,
