CRYDOM

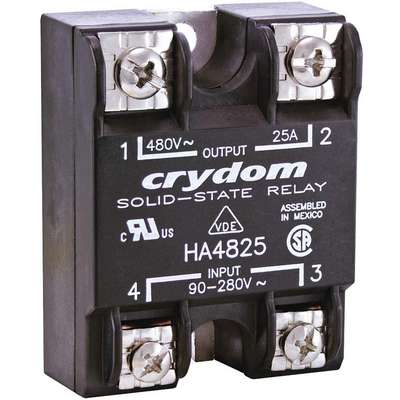

Crydom 1-Pole Surface Mount Solid State Relay; Max. Output Amps w/Heat Sink: 25

Hover over image to magnify
Solid State Relay,90 To 280VAC,
Solid State Relay,90 To 280VAC,

#922560-6 | Pkg Qty: 1

$90.72 pkg | $90.72 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage
25 A
Maximum Output w/Heat Sink
25A
Body Depth
2-1/4 in.
Mfr. Part Number
HA4825
Body Height
0.89 in.
Minimum Input Volts
90
Body Width
1-3/4 in.
Minimum Output Volts
48
Brand
CRYDOM
Mounting
Surface
Case Color
Black
Number of Poles
1
Contact Form
SPST-NO
Output or Controlled Voltage
48 to 530 VAC
Finger Safe
No
Overall Height
0.89 in.
Heat Sink
Not Included
Package Quantity
1
Input Power Consumption
0.6 VA
Phase
1
Input Voltage
90 to 280 VAC
Relay Turns On At
Zero Crossing
Input or Control Voltage
90 to 280 VAC
Shipping Weight
.25 lb.
Item
Solid State Relay
Switch Type
SCR
Maximum Input Volts
280
Turns On At
Zero Cross
Maximum Output Amps w/Heat Sink
25
Voltage Output
48 to 530VAC
Maximum Output Volts
530
General
Body Depth - Relay
2.25 in
Mounting - Relay
Surface
Body Height - Relay
0.89 in
Mounting - Solid State Relay
Surface
Body Width - Relay
1.75 in
Output or Controlled Voltage Range
48 to 530V AC
Contact Form - Relay
SPST-NO
Overall Height - Relay
0.89 in
Max. Output Amps Without Heat Sink
12.0 A
Standards
UL, CSA, VDE, CE

Product Description

Solid-State Relays

  • Perform well in harsh environments. Epoxy-sealed SCR design allows use in moisture-prone applications.
