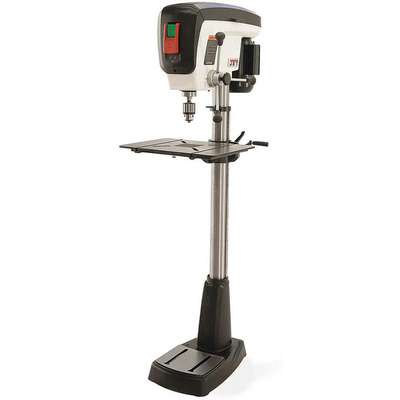

Jet 3/4 Motor HP Floor Drill Press, Belt Drive Type, 16-7/8" Swing, 115 Voltage

Hover over image to magnify
Floor Drill Press,Belt,16-7/8",
PI_Asset_979643
PI_Asset_979644
PI_Asset_979645
PI_Asset_979646
PI_Asset_979647
PI_Asset_979648
Floor Drill Press,Belt,16-7/8",
PI_Asset_979643
PI_Asset_979644
PI_Asset_979645
PI_Asset_979646
PI_Asset_979647
PI_Asset_979648

#922552-9 | Pkg Qty: 1

$1,432.80 pkg | $1,432.80 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Application
General Purpose Drill Press
Overall Depth
28-1/2 in.
Brand
JET
Package Quantity
1
Corded/Cordless
Corded
Phase
Single-Phase
Drive Type
Belt
Shipping Weight
223 lb.
Horsepower
3/4 HP
Speed Control
Fixed
Hz
60
Swing
16-7/8 in.
Item
Floor Drill Press
Voltage
115
Mfr. Part Number
JDP-17
General
Chuck Capacity
5/8 in
Minimum Spindle Speed
210 RPM
Chuck Style
Keyed
Nominal Voltage
115/230V AC
Column Diameter
3 3/16 in
Quill Diameter
2 1/16 in
Drill Press Application
Drilling
Speed Adjustment
Step Pulley
Drill Press Type
Floor Stand
Speed Range
210 to 3,500 RPM
Drilling Capacity in Stainless Steel
1/2 in
Spindle Speed Range
210 RPM - 3,500 RPM
Drilling Capacity in Steel
1/2 in
Spindle Travel
5 in
Drilling Capacity in Wood
5/8 in
Table Length
14 in
Maximum Overall Height
65 in
Table Slot
Yes
Maximum Spindle Speed
3,500 RPM
Table Tilt
90 Degrees Left and Right
Maximum Spindle-to-Base Height
46 1/2 in
Table Width
19 in
Maximum Spindle-to-Table Height
30 in
Tilting Angle
90 Degrees

Product Description

General Purpose Drill Presses, Floor Drill Press, Drive Type Belt, Swing 16 7/8 in, Spindle Taper 2MT, Motor HP 3/4 hp, Capacity Steel 3/4 in, Capacity Cast Iron Not Specified, Drilling Capacity Wood 2 in, Power Down Feed Included No, Voltage 115, Number of Speeds 16, Chuck Size 5/8 in, Spindle Speed 210 to 3500 rpm, Spindle Travel 5 in, Base Size 20 in x 12-5/8 in, Table Work Surface 14 in x 19 in, Hz 60, Phase 1, Number of T-Slots 2, Table Slot Size 5/8 in, Column Dia. 3 5/32 in

Item Barcode
9225529
