MILLER ELECTRIC

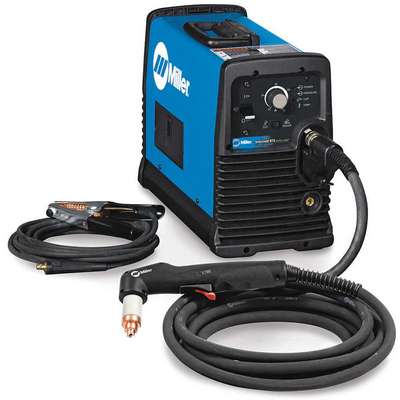

Miller Electric Plasma Cutter, Spectrum 875 Series, Input Voltage: 208/575 V
Hover over image to magnify
#922548-3 | Pkg Qty: 1
$6,726.94 pkg | $6,726.94 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
MILLER ELECTRIC
Input Voltage
208 VAC, 220 VAC, 230 VAC, 240 VAC, 380 VAC, 400 VAC, 440 VAC, 460 VAC, 480 VAC, 575 VAC
Cable Length
50 ft.
Item
Plasma Cutter
Cutting Capacity
7/8 in.
Mfr. Part Number
907584001
Design
Inverter
PSI
90
Duty Cycle
40%, 100%
Package Quantity
1
For Material Type
Aluminum, Mild Steel, Stainless Steel
Rated Output
60 A
For Maximum Material Thickness
7/8 in.
Series
Spectrum 875 Auto-Line
For Minimum Material Thickness
1/4 in.
Shipping Weight
63 lb.
Input
9.8/27.5 A
General
Application
Metal Cutting
Open Circuit Voltage
400 V DC
Cable Length (Ft.)
50
Overall Depth (In.)
18.5 in
Cutting Cable Length
50 ft
Overall Height (In.)
13.5 in
Cutting Capacity (In.)
7/8 in
Overall Width (In.)
8 3/4 in
Cutting Configuration
Gouging, Plasma Cutting
Plasma Cutter Model
907584001
Ground Cord Length
50 ft
Plasma Cutter Type
Plasma Cutter
Includes
Consumables Kit, Heavy-Duty Quick Connect Work Clamp with 20 ft Cable, XT60 Hand-Held Torch with 50 ft Lead
Plasma Cutting Output @ Duty Cycle
50 A @ 140V DC, 100% (1-Phase, 230 V), 50 A @ 140V DC, 100% (3-Phase, 380 V to 575 V), 60 A @ 140V DC, 40% (1-Phase, 208 V), 60 A @ 140V DC, 40% (1-Phase, 230 V), 60 A @ 140V DC, 40% (3-Phase, 208 V), 60 A @ 140V DC, 50% (3-Phase, 230 V to 380 V), 60 A @ 140V DC, 60& (3-Phase, 380 V to 575 V)
Input (Amps)
9.8/27.5A
Plasma Gas Type
Air, N2 (Nitrogen)
Input Voltage (Nominal)
208V, 240V, 400V, 480V
Plasma Torch
50 ft Handheld
Max. Amperage Range
50 A — 100 A
Plasma Torch Type
Handheld
Maximum Output Current
60 A
Rated Output at Duty Cycle
50 A @ 100%, 60 A @ 40%, 60 A @ 50%
Maximum Pressure - Air Compressor
90 psi
Required Air Flow
6.75 cfm
Product Description
Automatic Air Regulation, Can be Powered by Miller Engine Drive/Generator, CNC/Automation Cutting Capable
