REDHAT

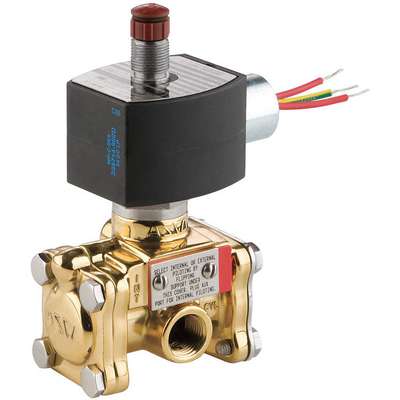

Solenoid Valve: 3/4 in Pipe Size - Valves, 120V AC, 10 psi Min. Op Pressure Differential
Hover over image to magnify
#922430-3 | Pkg Qty: 1
$829.62 pkg | $829.62 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CSA
NEMA Rating
1, 2, 3, 3S, 4, 4X
Body Material
Brass
Overall Height
6 in.
Brand
REDHAT
Overall Length
3-7/16 in.
Coefficient of Volume
4.8
Overall Width
3-5/16 in.
Configuration
Normally Closed
Package Quantity
1
Electrical Connections
1/2 in. Conduit w/18 in. Leads
Pipe Size
3/4 in.
Hz
50/60
Shipping Weight
4.6 lb.
Item
Solenoid Valve
Valve Design
3-Way/2-Position
Maximum Fluid Temperature
180°F
Voltage
120 VAC
Media Type
Air/Inert Gas and Water
orifice Dia._spec_s
11/16 in.
Mfr. Part Number
8316G074120/60,110/50DA
General
Body Material - Valves
Brass
Media - Valves
Air, Inert Gases, Water
Center Line Pipe Center Size
3 1/2 in
Min. Operating Pressure Differential
10 psi
Coil Enclosure
Watertight No Junction Box
Pipe Size - Valves
3/4 in
Coil Insulation Class
F
Seal Material - Valves
NBR
Environmental Rating - Valves
Indoor, Outdoor
Solenoid Valve Product Group
Solenoid Valve
Max. Operating Pressure Differential Air/Inert Gas
150 psi
Valve Configuration
Normally Closed
Max. Operating Pressure Differential Water
125 psi
Valve Ways and Positions
3-Way/2-Position
Product Description
This solenoid valve features normally closed valve configuration and is ideal for use with air and inert gases. Use in indoor and outdoor work environments. Features 3 pipe connections and 2 orifices that alternately apply pressure to, and exhaust pressure from valve actuators and single-acting cylinders.
Item Barcode
Solenoid Valve,3/2,3/4 In,Nc,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 24W676 | Solenoid Valve,3/2,3/ |
 | UNSPSC CODES | 40141605 | |
 | VMRS (ATA) CODES | 053-008-006 | Solenoid Valve,3/2,3/ |
