SCHNEIDER ELECTRIC

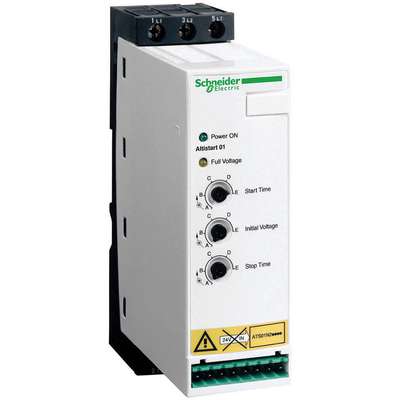

Schneider Electric 3 Phase, Soft Start, 22A Output Current, 208 to 240 VAC Input Voltage, 208 to 240 VAC Output Voltage
Hover over image to magnify
#922422-7 | Pkg Qty: 1
$310.32 pkg | $310.32 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SCHNEIDER ELECTRIC
Overall Depth
5.16 in.
Depth
4.45 in.
Overall Height
6.06 in.
Enclosure Rating
IP20, NEMA 1
Overall Width
1.77 in.
Height
6.06 in.
Package Quantity
1
IP Rating
20
Phase
Three
Input Voltage
200 to 240 VAC
Shipping Weight
1.44 lb.
Item
Soft Start
Start Type
Voltage Ramp Start
Mfr. Part Number
ATS01N222LU
Type
Dial Control
Output Current
22 A
Width
1.77 in.
Output Voltage
200 to 240 VAC
General
Application
Asynchronous Motors
Output Power
5 hp @ 3 Phase, 200 to 240V AC, 7.5 hp @ 3 Phase, 200 to 240V AC
Control Voltage
24V DC
Ramp Time
1 to 10 sec.
HP @ 3 Phase - 208V
5 hp
Standards
ASME A17.5, B44.1-96, C-tick, CCC, CSA Certified, EN/IEC 60947-4-2, GOST
HP @ 3 Phase - 230V
5 to 7-1/2
Starting Torque
30% to 80%
HP @ 3 Phase - 240V
5 to 7 1/2
Stop Time
1 to 10 sec
Includes
LED display two: "Power ON" and "Full Voltage" (up to speed)
With Bypass / No Bypass
With Bypass
Input Voltage Range
208/240VAC
Product Description
Altistart 01N1 and 01N2
- All feature Power "On" and "Full Voltage" LEDs. 01N1 models have a 1- to 5-sec. soft start adjustment dial (no soft stop). 01N2 models feature 1- to 10-sec. soft start and soft stop adjustment dials. Voltage boost (kickstart) logic input. 2- or 3-wire compatible. For use with TeSys U-line (no separate control voltage required), GV2, GV3, or other motor starters.
- Altistart® Soft Starters
- Adjust current inrush to protect motors from mechanical shock and stress during motor start-ups and help reduce utility costs. Set both initial voltage and ramp-up timing. Ambient temp.: -10° to 40°C. Suitable for fans, pumps, conveyors, compressors, saws and sanders, and mixers and agitators.
Item Barcode
Soft Start,208-230VAC,22A,3
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6VMD8 | Soft Start, 208-230VAC, |
 | UNSPSC CODES | 39121521 | |
 | VMRS (ATA) CODES | 053-006-009 | Soft Start, 208-230VAC, |
