SJE-RHOMBUS

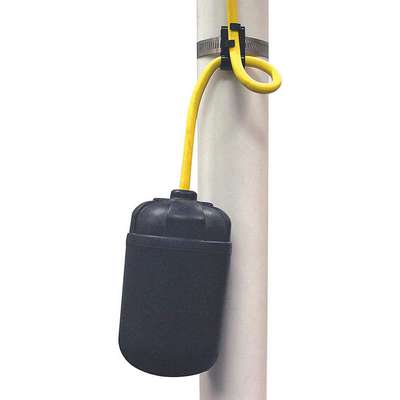

Sump or Sewage Float Switch, Mechanical Switch Type
Hover over image to magnify
#922418-1 | Pkg Qty: 1
$88.55 pkg | $88.55 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CSA
Maximum Temperature (Deg. F)
200
Amps
13A
Maximum Voltage
120/240 VAC
Body Material
Polypropylene
Maximum Water Level Adjustment
36
Brand
SJE-RHOMBUS
Mfr. Part Number
20HTMD1WP
Connection
Clamp
Minimum Water Level Adjustment
8
Electrical Connection
Piggyback
Mounting Bracket Material
Stainless Steel
Float Diameter
3-3/16
Mounts
Hose Clamp
Float Length
5-19/32
Operation
Pump Down
Float Material
Polypropylene
Package Quantity
1
Float Switch Contact Form
Normally Open
Pumping Range Minimum/Maximum
8 to 36
Float Switch Cord Length
20 ft.
Series
High Temp Master
Float Switch Material
Polypropylene
Shipping Weight
2.25 lb.
Float Switch Off Point
45° Below Horizontal
Switch Type
Mechanical
Height
5-19/32 in.
Tether Length Minimum-Maximum
3 in. to 18 in.
Item
Float Switch
Turns On At
45° Above Center
Length
5-19/32 in.
Type
Sump or Sewage
Maximum Amps Running
13
Voltage
125 VAC
Maximum Liquid Temperature
200°F
Wire Gauge
16 AWG
Maximum Pressure
13 psi
Wire Lead
SJOOW
Maximum Temperature (Deg. C)
93
General
Contact Default
Normally Open
Minimum Tether Length
3 in
Control Range
Adjustable
Nominal Voltage
110V AC
For Use With
Pumps with The Max Running Current Draw of 13 Amps or Less In The Liquid Temperatures of 200° or Less
Rated Voltage
125V AC
Includes
Mounting Clamp Assembly
Switch Actuation
Tether Float
Maximum Tether Length
18 in
Product Description
These tether float switches are activated by a float that is attached to the pump by a flexible tether that can be adjusted so the pump starts and stops automatically at preset levels. They require more space to operate compared to vertical float switches since the flexible tether moves in an arc as the water level rises and falls in the sump basin.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Float Switch,125VAC,13A,20 Ft.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 45DV33 | Float Switch, 125VAC,13A, |
 | UNSPSC CODES | 39122219 | |
 | VMRS (ATA) CODES | 053-006-009 | Float Switch, 125VAC,13A, |
