ARO

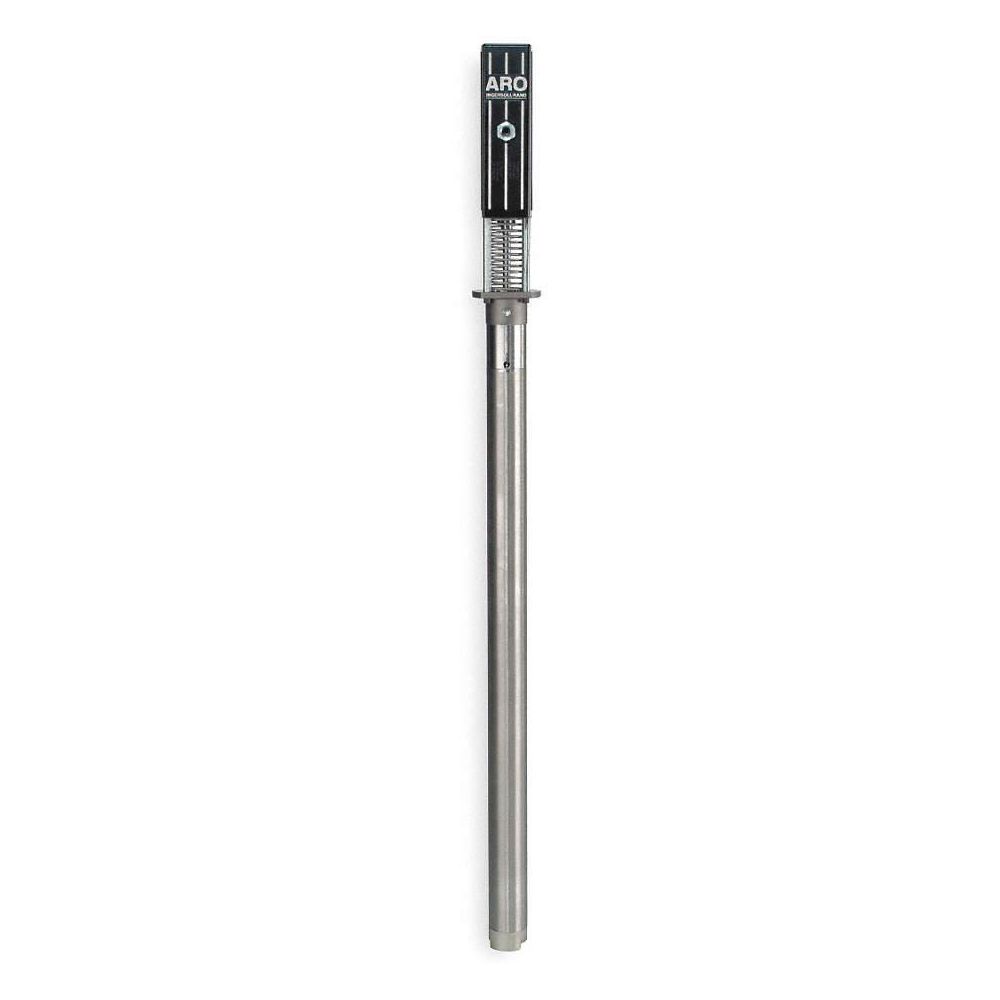

Air Operated Drum Pump, Basic Pump without Discharge Hose, For Container Type Drum

Hover over image to magnify
Pump,Air Drum,2 To 1
Pump,Air Drum,2 To 1
Double tap image to magnify
Pump,Air Drum,2 To 1
Pump,Air Drum,2 To 1

#922374-8Pkg Qty: 1

$2,949.12 pkg | $2,949.12 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 31.
|

Technical Specifications

Key Specifications
Body Material
Stainless Steel
Mfr. Part Number
NM2202B-41-731
Brand
ARO
Outlet Size
3/4 in.
Cylinder Material
Abrasive Resistant Hardened Stainless Steel
Pack Quantity
1
Delivers
1000 CPS
Ratio
2:1
Housing Material
Stainless Steel
Seal Material
PTFE
Inlet Size
1/4 in. FNPT
Shipping Weight
26.04 lb.
Item
Pump
Type
Drum
Maximum Flow (GPM)
4
Wetted Materials
Stainless Steel, PTFE
General
Compatible Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Brake Fluid, Chromic Acid 5%, Citric Acid 50%, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Formic Acid, Fresh Water, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Potassium Hydroxide (50%), Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Toluene, Xylene
Max. Flow Rate
4 gpm
For Container Size
55 gal
Max. Viscosity
1,000 cps
For Media Type
Acetic Acid, Ammonia, Antifreeze, Automatic Transmission Fluid, Bleach, Brake Fluid, Chromic Acid, Citric Acid, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formic Acid, Glycerin, Heptane, Hexane, Hydraulic Oil, Hydrazine, Ketones, Methyl Chloride, Motor Oil, Nitric Acid, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Stoddard Solvent, Toluene, Water, Xylene
Not Recommended Chemicals
Ammonium Hydroxide, Biodiesel, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 50%, Cyclohexane, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Fertilizers, Fungicides, Gasoline, Herbicides, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Naphtha, Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Salt Water, Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Trichlorethylene (50%), Turpentine, Windshield Washer Fluid
For Use With
Anti-freeze, Adhesives, Lacquers, Solvents, Varnishes, Water and Water-based Fluids
Pump Package Type
Basic Pump without Discharge Hose
Includes Suction Tube
Yes

Product Description

Acid, base, and solvent pneumatic drum pumps are made with corrosion-resistant materials that withstand a range of acidic and basic chemical concentrations. They are used to dispense and transfer moderate to large volumes of substances and solutions in laboratories and chemical processing plants.
