SQUARE D

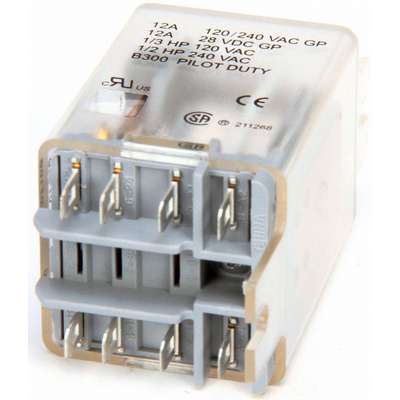

Square D 24VAC, 8-Pin Flange Mount Relay; Flange Location: Side, AC Contact Rating: 12A @ 240V
Hover over image to magnify
#922367 | Pkg Qty: 1
$46.11 pkg | $46.11 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
12 A @ 240 V
Item
Flange Mount Relay
Base Type
Square
Mfr. Part Number
8501KFR12V14
Brand
SQUARE D
Mounting
Side Flange
Coil VA Rating
2-1/2
Number of Pins
8
Coil Volts
24 VAC
Number of Poles
2
Contact Form
DPDT
Overall Height
2-3/4 in.
Contact Material
Silver Cadmium Oxide
Package Quantity
1
Contact Rating
12 A @ 240 VAC/28 VDC
Pins
8
DC Contact Rating
12 A @ 28 V
Relay Power Consumption
2.5 VA
Electrical Connection
0.250 in. Push On Terminal
Resistive Contact Amp Rating
12A @ 120/240VAC, 12A @ 28VDC
Flange Location
Side
Shipping Weight
.2 lb.
Input Power Consumption
2.5 VA
Status Indicator
No
General
AC Contact Rating - Relay
12A @ 240V
HP @ 120V
1/3 hp
Body Depth - Relay
1.4 in
HP @ 240V
1/2 hp
Body Height - Relay
1.9 in
Mounting - Relay
Side Flange
Body Width - Relay
1.4 in
Number of Pins - Relay
8
Contact Form - Relay
DPDT
Overall Height - Relay
2.75 in
DC Contact Rating - Relay
12A @ 28V
Power Consumption - Relay
2.5 VA
Features
Standard Relay, Spade Terminals
Standards
CSA Certified, CE Marked
Product Description
Flange Mount Relay, Coil Volts 24V AC, AC Contact Rating - Relay 12A @ 240V, DC Contact Rating - Relay 12A @ 28V, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Side Flange, Power Consumption - Relay 2.5 VA, Contact Material Silver Cadmium Oxide, Status Indicator No, Electrical Connection 0.187 in Push On Terminal
Item Barcode
Relay,8Pin,Dpdt,10A,24VAC
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2DR87 | Relay,8Pin, DPDT,10A, |
 | UNSPSC CODES | 39122325 | |
 | VMRS (ATA) CODES | 053-006-009 | Relay,8Pin, DPDT,10A, |
