ZOELLER

1 HP Automatic Submersible Sewage Pump, 230 Voltage, 133 GPM of Water @ 15 Ft. of Head

Hover over image to magnify

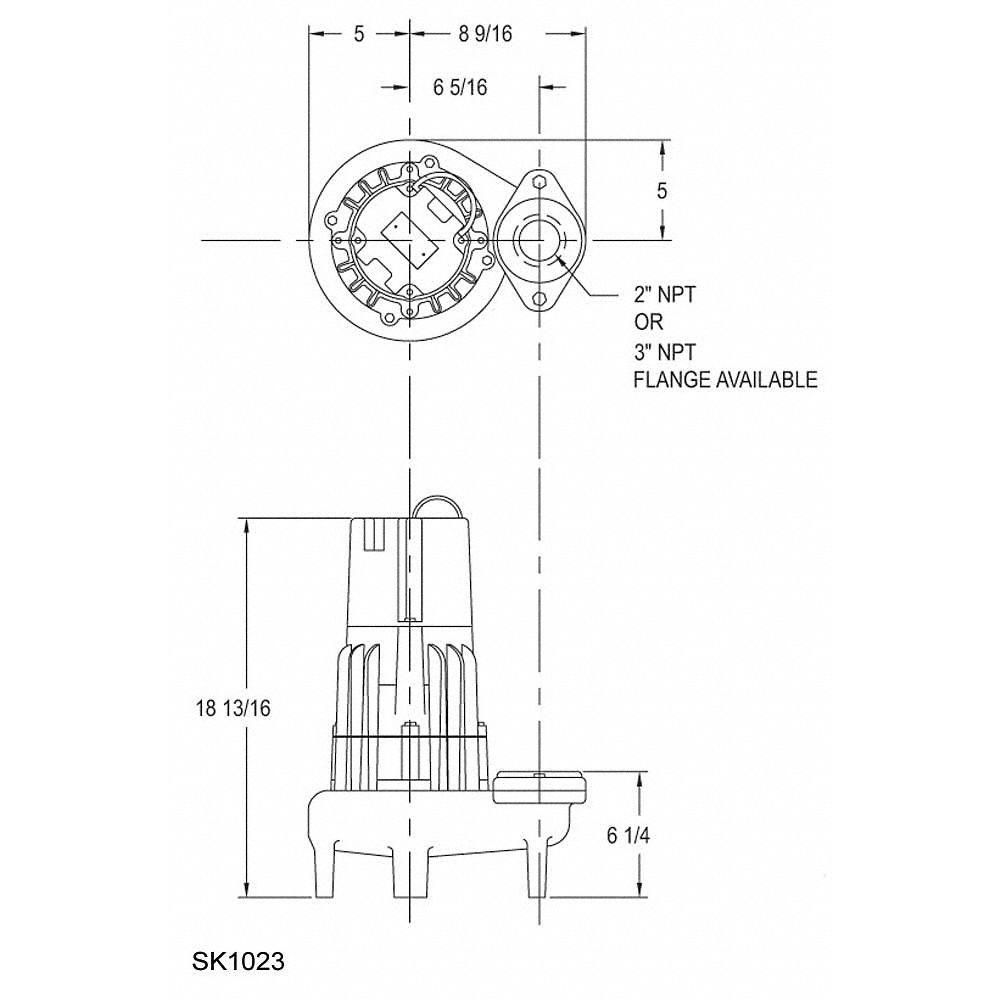

Submersible Sewage Pump,1HP,
PI_Asset_969152
Submersible Sewage Pump,1HP,
PI_Asset_969152
1 HP Automatic Submersible Sewage Pump, 230 Voltage, 133 GPM of Water @ 15 Ft. of Head Video

#922354-3 | Pkg Qty: 1

$1,635.22 pkg | $1,635.22 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
UL Listed, CSA Certified
Maximum Temperature (Deg. F)
130
Amps
8.9 A
Mfr. Part Number
D284
Base Material
Cast Iron
Mfr. Warranty Length
1 yr.
Bearing Type
Upper Sleeve/Lower Ball
Motor RPM
1750
Brand
ZOELLER
Motor Type
Capacitor Start, Oil-filled
Cord Length
10 ft.
Off Point
5-1/4 in.
Diameter
13-9/16 in.
On Point
15-1/4 in.
Discharge NPT
2 in.
Package Quantity
1
GPM of Water @ 10 Ft. of Head
157
Phase
1
GPM of Water @ 15 Ft. of Head
133
Pump Body Material
Cast Iron
GPM of Water @ 20 Ft. of Head
106
Pump HP
1
GPM of Water @ 25 Ft. of Head
73
Pump Type
Automatic
GPM of Water @ 30 Ft. of Head
42
RPM
1750
GPM of Water @ 5 Ft. of Head
179
Shaft Material
Carbon Steel
Height
19-9/16
Shaft Seal
Carbon/Ceramic
Horsepower
1
Shaft Seal Material
Carbon, Ceramic
Housing
Cast Iron
Shipping Weight
82.35 lb.
Housing Material
Cast Iron
Switch Type
Vertical
Impeller Material
Cast Iron
Thermal Protection
Yes
Input Phase AC
1
Top Material
Cast Iron
Item
Submersible Sewage Pump
Type
Automatic
Maximum Diameter Solids
2 in.
Voltage
240 VAC
Maximum Head
35 ft.
Warranty
1 yr.
Maximum Liquid Temperature
104°F
General
Body Dia.
13 9/16 in
Min. Sump Pit Dia.
18 in
Discharge Dia.
2 in
Nominal Voltage
220V AC
Discharge Gender
Female
Phase - Pumps
1
Discharge Standard
NPT
Rated Voltage
230V AC
Flow Rate @ 10 Ft. of Head
157 gpm
Shaft Seal Material - Pumps
Carbon, Ceramic
Flow Rate @ 15 Ft. of Head
133 gpm
Standards
CSA Certified
Flow Rate @ 20 Ft. of Head
106 gpm
Switch Actuation
Vertical Float
HP
1
Switch Electrical Connection
Integral

Product Description

These general purpose single-phase 200 to 240V sewage ejector pumps use a higher voltage that allows for larger motors that require less current than lower-voltage motors. They remove sewage containing solids from drains where a gravity system won't work, such as in septic systems that are below the main sewer line. They are compatible with most 240V U.S. wall outlets.
