DAYTON
Dayton 24" 3-Phase Tubeaxial Fan with Motor and Drive Package, 208-230/460V, 1688 Fan RPM

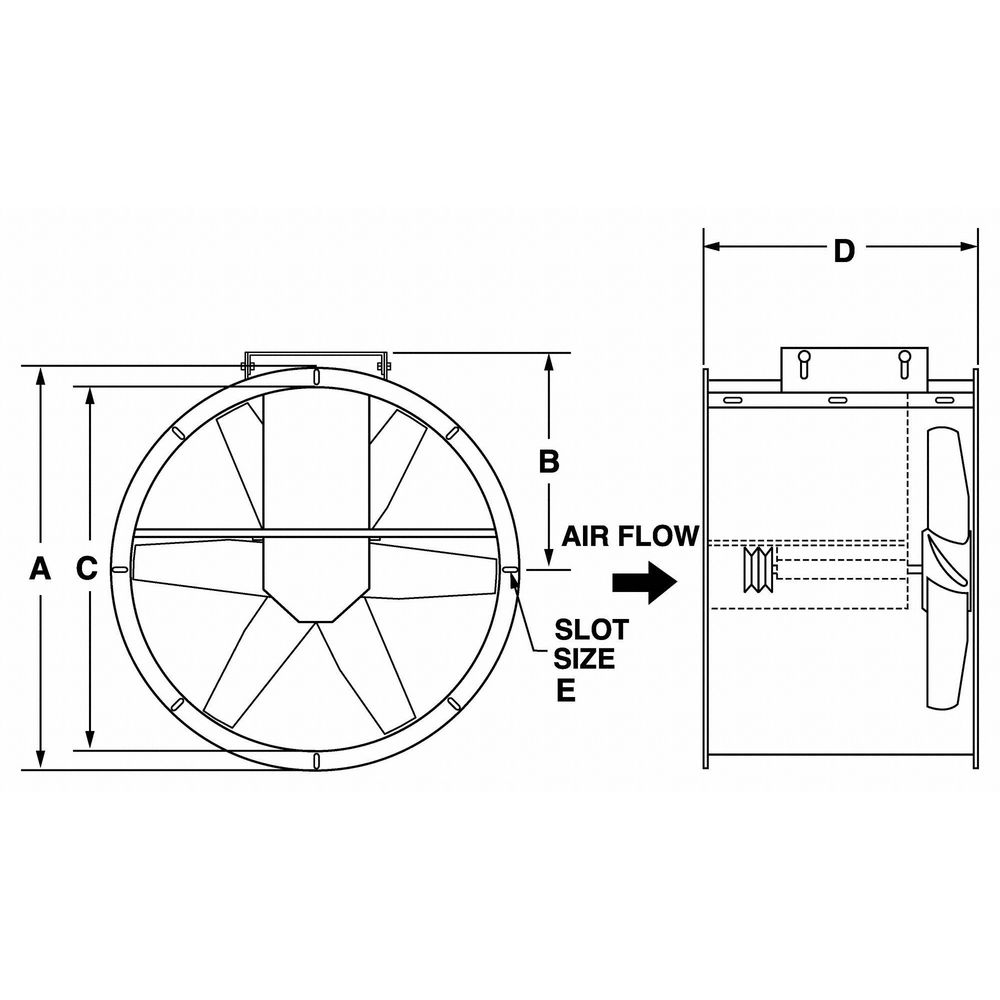

Hover over image to magnify
#922348-2 | Pkg Qty: 1
$3,049.49 pkg | $3,049.49 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Assembled/Unassembled
Unassembled
Motor HP
2
Blade Diameter
24 in.
Motor Type
3-Phase
Blade Material
Steel
Mounting Position
Vertical/Horizontal
Brand
DAYTON
Number of Blades
6
Height
37-1/4 in.
Package Quantity
1
Item
Tubeaxial Fan with Motor and Drive Package
Phase
3
Mfr. Part Number
7J350
Shipping Weight
200.9 lb.
Motor Enclosure
Totally Enclosed Fan Cooled
Width
26-7/8 in.
General
Airflow @ 0.000 in SP
9,112 cfm
Includes Drive Package
Yes
Airflow @ 0.000 in SP - Range
0 to 9,999 cfm
Includes Motor
Yes
Airflow @ 0.000 in. SP - Range
8,000 to 15,000 cfm
Maximum Ambient Temperature
200 Degrees F
Airflow @ 0.250 in Static Pressure
8,573 cfm
Maximum Fan Speed
1,688 RPM
Assembly
Unassembled
Maximum Inlet Air Temperature
200 Degrees F
Blade Finish
Baked Enamel
Maximum Noise Level @ 5 Feet
43 sones
Body Diameter
24 1/2 in
Motor Enclosure Design
Totally Enclosed Fan-Cooled (TEFC)
Bolt Circle Diameter
25 3/4 in
Motor Horsepower
2 hp
Brake Horsepower
1 49/50 hp
Motor Speed
1,735 RPM
Current
6.0 to 5.4/2.7 A
Nameplate Voltage
208-230/460V AC
Exhaust Airflow @ 0.000 in SP
9,112 cfm
Noise Level
43 sones@ 0.250 in SP and 5 ft
Exhaust Airflow @ 0.125 in SP
8,856 cfm
Nominal Voltage
208-230/460V AC
Exhaust Airflow @ 0.250 in SP
8,573 cfm
Propeller Shaft Diameter
1 in
Exhaust Airflow @ 0.375 in SP
7,983 cfm
Resistance Properties
Corrosion Resistant
Exhaust Airflow @ 0.500 in SP
7,290 cfm
Smoke Control Maximum Temperature
1,000 Degrees F for 15 min, 500 Degrees F for 4 hr
For Air Type
Emergency Smoke
Standards
AMCA, cULus
Includes
Belt Guard
Product Description
Belt-Drive Smoke Exhaust Tubeaxial Fans
- Mount: vertical or horizontal Permanently lubricated ball bearings with double-wall insulated cover Heat slinger on the shaft to dissipate heat Max. inlet air temp.:/smoke exhaust rating: 500ºF for 4 hr., 1000ºF for 15 min. Max. ambient air temp.: 200ºF Precision-balanced, corrosion-resistant baked enamel-coated steel blades Mounting flanges on both ends for easy installation Designed for life-saving smoke exhaust under severe temps. Dual-belt, variable pitch drives are designed for 1.5 service factor. Heavy-gauge baked enamel-coated steel housing and belt guard. Install according to the requirements of NFPA 92A, Recommended Practice for Smoke Control Systems. Intended for connection to and control by Listed Smoke Control System Equipment (UUKL). Motors and belts are packed separately when complete fan with drive package is ordered. UL Listed for U.S. and Canada. Note: These fans cannot be used if the environment surrounding them is not always free of flammable gases, vapors, or liquids; combustible dust; or ignitable fibers or flyings. Installation must comply with all local and national safety codes including the National Electrical Code (NEC) and the National Fire Protection Act (NFPA). OSHA complying guards are required when fan is installed within 8 ft. of floor or working level, or within reach of personnel. Review OSHA Codes and UL Standards.
Compliance & Restrictions
Shipping Exclusions: CA
Item Barcode
Tubeaxial Fan w/ Drive Pkg,208-
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 7J350 | Tubeaxial Fan w/ Drive |
 | UNSPSC CODES | 40101604 | |
 | VMRS (ATA) CODES | 053-006-009 | Tubeaxial Fan w/ Drive |
