HAMILTON

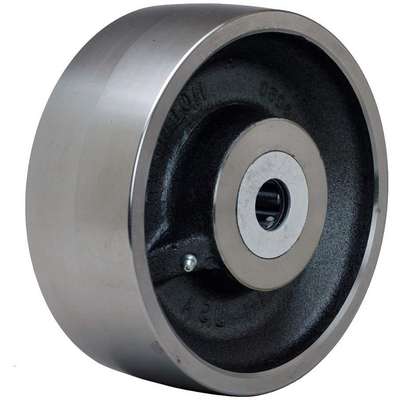

Hamilton 8" Caster Wheel, 14,000 lb. Load Rating, Wheel Width 3", Steel, Fits Axle Dia. 1"

Hover over image to magnify
Caster Wheel,Steel,8 In.,14,
Caster Wheel,Steel,8 In.,14,

#922315-2 | Pkg Qty: 1

$208.85 pkg | $208.85 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
HAMILTON
Load Rating
14,000 lb.
Caster Core Material
Steel
Mfr. Part Number
W-830-FSH-1
Caster Load Rating Range
Extra Super Duty
Non-Marking
No
Caster Temperature Range Available
Yes
Package Quantity
1
Caster Wheel Bearings
Roller
Replacement For
23DN68, 23CZ44
Caster Wheel Shape
Standard
Shipping Weight
19.6 lb.
Caster Wheel/Tread Material
Steel
Temperature Range
-30 deg. F to 600 deg. F
Core Color
Silver
Wheel Bearings
Roller
Core Material
Steel
Wheel Color
Silver
Durometer
179 BHN
Wheel Diameter
8 in.
Fits Axle Diameter
1 in.
Wheel Material
Steel
Hub Length
3-1/4 in.
Wheel Width
3 in.
Item
Caster Wheel
General
Bore Dia.
1"
Tread Shape
Standard
Core Width
3 1/4 in
Wheel Bearing Type
Roller
Fits Axle Dia.
1 in
Wheel Core Material
Steel
For Axle Size
1 in
Wheel Dia.
8 in
Hub Width
3-1/4"
Wheel/Tread Hardness
179 BHN
Includes Spanner Bushing
Not Included
Wheel/Tread Material
Steel
Load Rating Range
6,000 lb and Greater

Product Description

Steel tread wheels are made from hot-forged steel to create a strong wheel with excellent shock resistance. They can bear heavier loads than iron wheels. Steel wheels are suitable for moving extra-heavy loads on floors that are in poor condition. They are used in warehouses, manufacturing plants, and other industrial environments. Steel will rust if exposed to water, so these wheels are best suited for dry environments.

Metal tread wheels offer very high weight capacities and can withstand shock, abrasion, impact, rough use, and exposure to temperature extremes. The wheels' tread and core are manufactured as one piece from the same material. These wheels are suitable for use on carts, racks, trucks, trolleys, and similar equipment that will be carrying heavy loads over broken floors or debris. Metal tread wheels are heavier than wheels with rubber or plastic treads and are more likely to damage floors.
