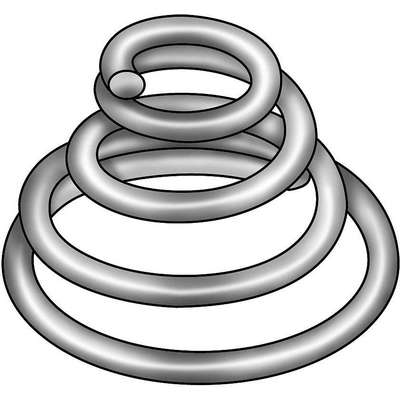

Compression Spring: Conical, 302 Stainless Steel, 1/4 in Overall Lg
Hover over image to magnify
#922312-2 | Pkg Qty: 1
$2.45 pkg | $2.45 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
APPROVED SUPPLIER
Overall Length
1/4 in.
End Type
Squared and Not Ground
Pack Quantity
1
Finish
Plain
Shipping Weight
.01 lb.
Item
Compression Spring
Spring Rate
27.58 lb./in.
Material
302 Stainless Steel
Type
Conical
Meets/Exceeds
ASTM A313
Wire Diameter
0.029 in.
Mfr. Part Number
1NCU6
Wire Type
Round
General
Large Outside Dia.
0.36 in
Small Outside Dia.
0.125 in
Load @ 50% Free Length (Lbs.)
3.45 lb
Spring Rate (Lbs./In.)
27.58
Load @ Solid (Lbs.)
5.29 lb
Wire Dia.
0.029 in
Product Description
Conical Compression Springs
- 302 stainless steel Max. temp.: 500°F
- Cone-shaped coils compress within one another to achieve a much smaller solid height than ordinary compression springs. Squared (unground) ends. Spring rate is linear due to conical design.
- Meet ASTM A313/AMS5688 standards.
Item Barcode
Compress Spring,Conical,302 SS,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1NCU6 | Compress Spring, |
 | UNSPSC CODES | 31161904 | |
 | VMRS (ATA) CODES | 053-007-002 | Compress Spring, |
