HUBBELL WIRING DEVICE-KELLEMS

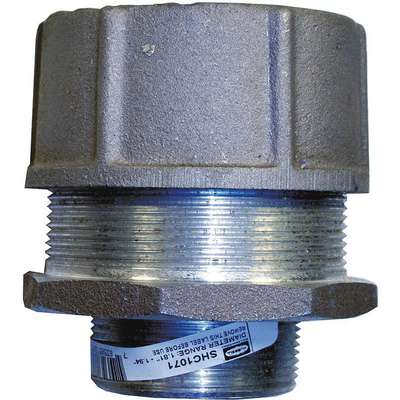

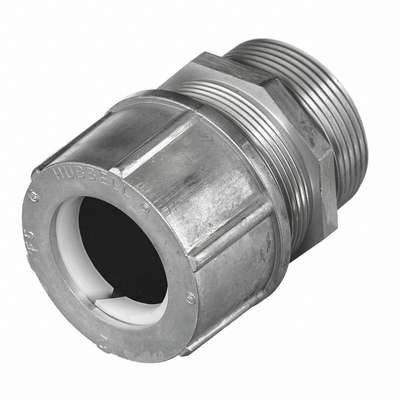

Liquid Tight Cord Connector, 1.81" to 1.94" Cord Dia., 2" MNPT Box Connection

Hover over image to magnify
Cord Connector,2 In.,Straight,
PI_Asset_1982029
Cord Connector,2 In.,Straight,
PI_Asset_1982029

#922311-6 | Pkg Qty: 1

$123.80 pkg | $123.80 ea

Unavailable

Shipping to 60045
Shop Category
|

Technical Specifications

Key Specifications
Body Color
Silver
Liquid Tight / Dust Tight
Liquid Tight
Body Material
Aluminum
Male/Female
Male
Box Connection
2 in. MNPT
Material
Aluminum
Brand
HUBBELL WIRING DEVICE-KELLEMS
Maximum Operating Temperature
240 deg. F
Collar Material
Aluminum
Mesh Length
No Strain Relief Mesh
Color Family
White
Mesh Material
No Strain Relief Mesh
Conduit Size
2 in.
Mfr. Part Number
SHC1071
Connector Type
Straight
Minimum Operating Temperature
-30 deg. F
Cord Diameter Range
1.81 in. to 1.94 in.
Minimum Throat Diameter
1.94 in.
Gland Color Code
No Code
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Hazardous Location Rating
Not Rated
Number of Cords
1
Hub Size
2 in.
Overall Length
3-9/16 in.
Hub Trade Size
2 in.
Package Quantity
1
IP Rating
IP66
Shipping Weight
1.63 lb.
Insulated
No
Thread Size
2 in.
Item
Liquid Tight Cord Connector
Thread Type
NPT
Length
3.58 in.
General
Bushing Material
Neoprene
Form Size
F7
Compatible Conduit Trade Size
2 in
Length - Box to End of Connector
2 11/16 in
Compatible Conduit Type
Liquid Tight Cord Connector
Liquid Tight
Yes
Connection Orientation
Straight
Material - Cord Connector
Aluminum
Environmental Rating
Hazardous Locations
Min. Throat Dia.
1.94"
External Strain Relief Length
No External Strain Relief
Standards
in Accordance With Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
External Strain Relief Material
No External Strain Relief
Strain Relief Type
No External Strain Relief
For Maximum Cable OD
1.94 in
Style - Connector
Straight
For Minimum Cable OD
1.81 in
Thread Gender
Male
For Use With
Kellems Wire Management
Thread-Type
NPT Thread

Product Description

Liquid Tight Cord Connector, Cord Dia. Range 1.81 in to 1.94 in, Box Connection 2 in MNPT, Material - Cord Connector Aluminum, Material - External Strain Relief No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, Length - External Strain Relief No External Strain Relief, Length - Box to End of Connector 2.7 in, Insulated No
