DOLPHIN COMPONENTS CORP

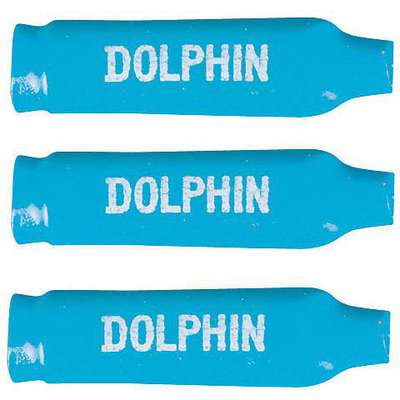

Dolphin Components Corp 1-Port Moisture Resistant, Run Tap Insulation Displacement Connector, PK of 100

Hover over image to magnify
Displacement Connector,26-16
Displacement Connector,26-16
Double tap image to magnify
Displacement Connector,26-16
Displacement Connector,26-16

#922310-3Pkg Qty: 100

$14.46 pkg | $0.14 ea

In Stock

Shipping to 43085
Expected to arrive Wed. Mar 26.
|

Technical Specifications

Key Specifications
Application
Moisture Resistant
Maximum Temperature (Deg. F)
-40 to 221F
Brand
DOLPHIN COMPONENTS CORP
Maximum Voltage
300 V
Color Family
Blue
Mfr. Part Number
DC-100-S
Connector Type
Run Tap
Number of Ports
1
Crimping Tools Part No.
4KEC3 or 4KEC4
Package Quantity
100
Fill Material
Sealant
Shipping Weight
.2 lb.
Flame Retardant
Yes
Solid Wire Range
26-16 AWG
Insulation Material
PVC
Stranded Wire Range
26-16 AWG
Item
Insulation Displacement Connector
Type
Sealant Filled/Moisture Resistant
Material of Construction
PVC Tubing
Volts AC/DC
300
Maximum Insulation Diameter
0.194 in.
Wire Range
26 to 16 AWG
Maximum Temperature
221 deg. F
General
Compatible Installation Tool Model Number
DC-4141, DC-500F
Maximum Run Wire Size
16 AWG
Compatible Part Number
4KEC3, 4KEC4
Maximum Tap Conductors
2
Contact Finish
Nickel
Maximum Tap Wire Size
16 AWG
For Tap Wire Size
16 AWG, 18 AWG, 19 AWG, 20 AWG, 22 AWG, 26 AWG
Minimum Tap Wire Size
26 AWG
Max. Insulation Dia.
0.194 in
RoHS Compliant
Yes
Maximum Run Conductors
2
Tap Wire Size Range
26 AWG – 16 AWG

Product Description

Each of these super B-wire connectors are designed to help users crimp 4 #22 gauge insulated wires in a single step. The connectors feature a funnel-entry design to help provide easy wire insertion and ideal positioning without wire strand hang-up. Each also features a large opening for multiple wires and heavy wire insulation. Teeth are razor-sharp to help eliminate the need for wire stripping. A sealant filling helps to provide a corrosion-resistant moisture barrier.
