CAROL

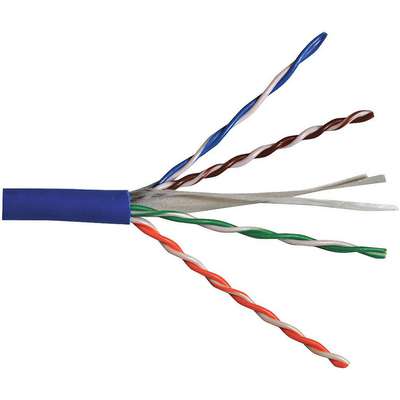

Carol Unshielded Category Cable, Jacket Color: Blue, Number of Conductor Pairs: 4, 100 ft. Length
Hover over image to magnify
#922307 | Pkg Qty: 1
$255.74 pkg | $255.74 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bend Radius
1 in.
Operating Temperature Range
-20 deg. C to 75 deg. C
Brand
CAROL
Outside Diameter
0.2 in.
Category Type
6
Package Type
Pull Pac
Conductor Size
23 AWG
Packaging
Pull-Pac«
Data Cable Category
6
Plenum Rated
Yes
Frequency
250 MHz
Pulling Force
32 lb.
Installation Temperature Range
0 to 60C
Shielded
No
Item
Category Cable
Shielded/Unshielded
Unshielded
Jacket Color
Blue
Shipping Weight
2.68 lb.
Jacket Material
PVC
Solid / Stranded
Solid
Length
100 ft.
Spool Length
100 ft.
Low Temperature Rating (Deg. C)
0 for Installation, -20 for Operation
Total Number of Conductors
8 (4 Pair)
Mfr. Part Number
CP6.30.07
UL Type
UL 444
NEC Article/Type
800 CMP
Wire Size
23 AWG
Number of Conductor Pairs
4
Wire/Cable Jacket Material
PVC
General
Category - Data Cable
6
Operating Temp. Range
-20° to 75°C
Conductor Size - Data Cable
23 AWG
Package Type - Data Cable
Pulling Pack
Fire Rating - Data Cable
Plenum
Shielded / Unshielded
Unshielded
Installation Temp. Range
0° to 60°C
Standards
ANSI/TIA/EIA 568 B.2-1, ANSI/TIA/EIA 862, ISO/IEC 11801 Ed. 2.0, ICEA S-102-700, UL and c(UL) Type CMP (NFPA262 and CSA FT-6 Steiner Tunnel Fire Tests), UL 444
Jacket Material - Wire and Cable
PVC
Total Number of Conductors - Data Cable
8 (4 Pair)
NEC Article and Type
800 CMP
UL Types
UL 444
Product Description
Excellent for digital video and broadband and baseband analog video. Filler design makes cable very round and easy to handle.
