CHICAGO PNEUMATIC

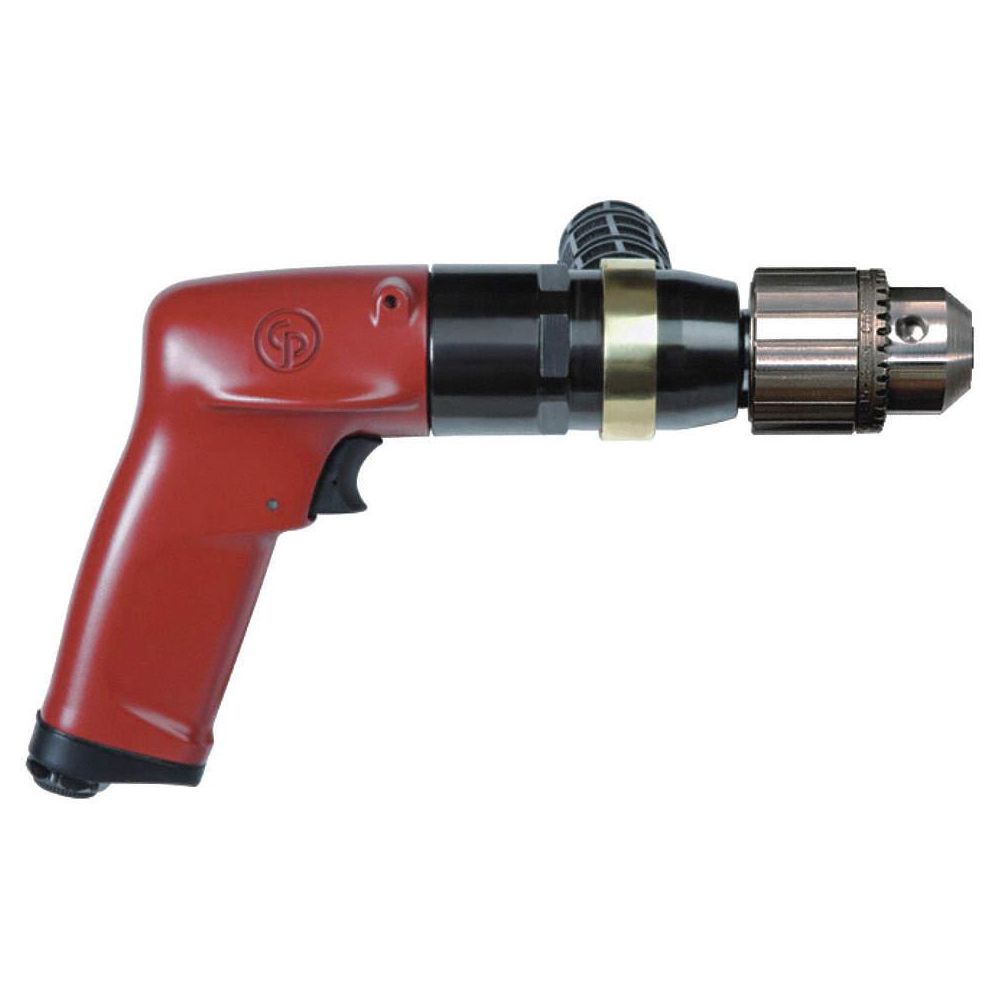

Chicago Pneumatic 1.0 HP Industrial Duty Keyed Air Drill, Pistol Style, 1/2" Chuck Size
Hover over image to magnify
#922255-2 | Pkg Qty: 1
$535.60 pkg | $535.60 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Housing Material
Aluminum
Air Inlet NPT
1/4 in.
Item
Air Drill
Air Tool Body Type
Pistol
Mfr. Part Number
CP1117P09
Air Tool Drill Chuck Type
Keyed
Minimum Hose Size
3/8 in.
Avg CFM @ 15 Sec Run Time
7.4
Overall Length
8 in.
Bearings
Ball Bearing
Package Quantity
1
Brand
CHICAGO PNEUMATIC
Required Pressure
90 psi
CFM @ Full Load
29.8
Reversing
No
Chuck Size
1/2 in.
Shipping Weight
5.85 lb.
Duty
Industrial
Throttle Type
Trigger
Free Speed
900 RPM
Tool Length
8-3/8 in.
Gear Train
Planetary
Tool Weight
3.4 lb.
Handle Material
Aluminum
Type
Industrial Duty
Horsepower
1.0 HP
Variable Speed
Yes
Housing
Aluminum
General
Air Pressure
90 psi
Drilling Capacity in Steel
1/2 in
Bearing Design
Ball
Includes
Chuck Key, Side Handle
Body Style - Air Tools
Pistol
Max. Torque
14.3 ft-lb
Chuck Material
Metal
Min. Torque
0 ft-lb
Drill Chuck Type
Keyless
Noise Level
83 dB
Drilling Capacity in Aluminum
1/2 in
Spindle Thread Size
3/8"-24
Drilling Capacity in Cast Iron
1/2 in
Product Description
This pistol grip air drill offers ergonomic comfort for steady control in a variety of applications. It is designed to withstand rough handling, and offers high durability and performance in production, manufacturing, or assembly environments.
