TSUBAKI

Carbon Steel, Single Strand Roller Link, For Industry Chain Size: 60H, PK 5

Hover over image to magnify

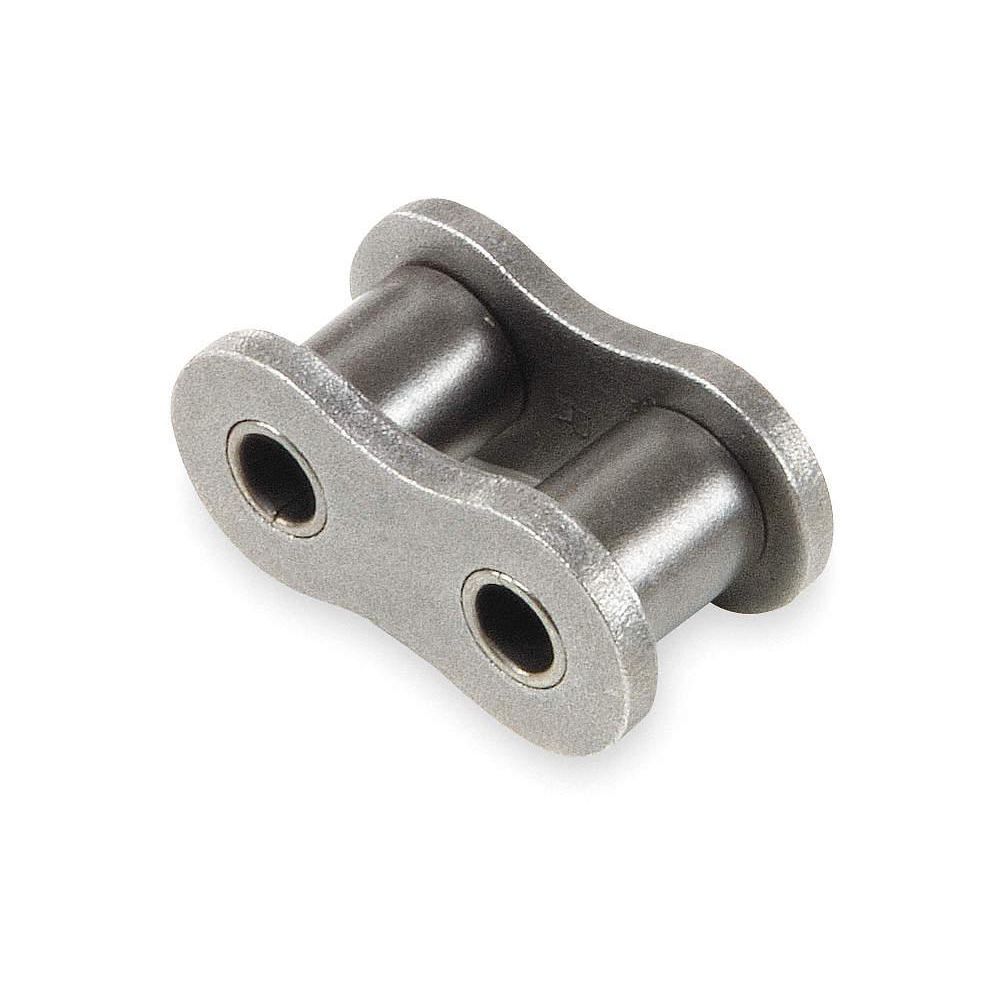

Roller Link,Heavy Series,PK5
Roller Link,Heavy Series,PK5

#922250-4 | Pkg Qty: 5

$23.05 pkg | $4.61 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
ANSI Chain Size
60
Material
Steel
Agency Compliance
American National Standards institute (ANSI)
Mfr. Part Number
60HRL
Brand
TSUBAKI
Pin Length
1.252 in.
Inside Pin Diameter
0.234 in.
Shipping Weight
.35 lb.
Item
Roller Link
Tensile Strength
9920 lb.
Lubrication
SAE 10 to SAE 50
General
Chain Construction
Riveted Pin
Outside Pin Dia.
0.234 in
Chain Link Material
Carbon Steel
Outside Pin Dia. (In.)
0.234
Chain Link Overall Width
1.252 in
Overall Width (In.)
1.252
Chain Number
60
Pin Contruction
Riveted Pin
Chain Overall Width
1 1/4 in
Pin Length (In.)
1.252
Chain Roller Dia.
0.469 in
Pin Link Plate Thickness (In.)
0.125
Connecting End to Center Line
0.669 in
Pin Outside Diameter
0.234 in
Connecting End to Center Line (In.)
0.669
Pitch (In.)
3/4
For Chain Number
60
Plate Height
0.614 in, 0.713 in
For Chain Style
Heavy Riveted Roller Chains
Plate Thickness
0.125 in
Heavy Series
Yes
Rivet End to Center Line
0.583 in
Heavy Series (from Heavy)
Heavy
Rivet End to Center Line (In.)
0.583
Industry Chain Pitch
3/4 in
Roller Chain Link Type
Heavy Riveted
Industry Chain Size
60H
Roller Chain Standard
ANSI
Inside Pin Dia.
0.234 in
Roller Dia. (In.)
0.469
Inside Pin Dia. (In.)
0.234
Roller Diameter
15/32 in
Length (In.)
0.750
Roller Link Plate Height (In.)
0.713
Max. Allowable Load
2,200 lb
Temp. Range
15° to 300°F
Max. Allowable Load (Lb.)
2200
Tensile Strength (Lb.)
9920
Maximum Operating Temperature
300 °F
Width Between Roller Link Plates
0.5 in
Minimum Operating Temperature
15 °F
Width Between Roller Link Plates (In.)
0.500
Number of Strands
1

Product Description

Roller Link, Heavy Riveted, Industry Chain Size 60H, Carbon Steel Chain Link Material, Industry Chain Pitch 3/4 in, Chain Link Overall Width 1.252 in, Chain Roller Dia. 0.469 in, Width Between Roller Link Plates 0.5 in, Roller Link Plate Height 0.713 in, Connecting End to Center Line 0.669 in, Rivet End to Center Line 0.583 in, Pin Length 1.252 in, Inside Pin Dia. 0.234 in, Outside Pin Dia. 0.234 in, Pin Link Plate Thickness 0.125 in, Riveted Pin Type, Max. Allowable Load 2,200 lb
