SQUARE D

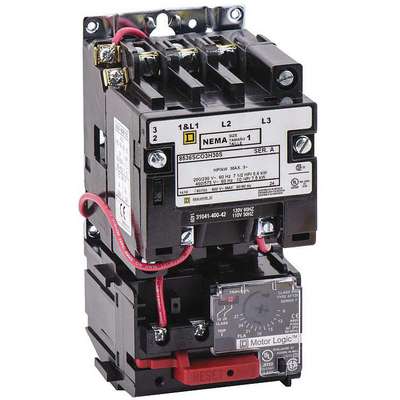

Square D NEMA Magnetic Motor Starter, 120VAC Coil Volts, Overload Relay Amp Setting: 9 to 27A
Hover over image to magnify
#922243-6 | Pkg Qty: 1
$759.32 pkg | $759.32 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
Nonreversing
Mfr. Part Number
8536SCO3V02H30S
Amps AC
27
NEMA Enclosure Type
Open
Brand
SQUARE D
NEMA Rating
Open
Coil Volts
120 VAC
Number of Poles
3
Depth
3-1/2 in.
Package Quantity
1
Enclosure NEMA Rating
No Enclosure
Shipping Weight
4.15 lb.
Enclosure Type
Open
Starter Type
NEMA Style
Height
6.9 in.
Type
NEMA
Hz
50/60
Width
4-1/2 in.
Item
NEMA Magnetic Motor Starter
General
Auxiliary Contact Form
1NO
HP @ 3 Phase - 480V
10 hp
Features
Solid State Overload Relay
HP @ 3 Phase - 575V
10 hp
HP @ 3 Phase - 208V
7 1/2 hp
Includes
Solid state overload relay
HP @ 3 Phase - 230V
7-1/2
NEMA Size
1
HP @ 3 Phase - 240V
7 1/2 hp
Overload Relay Amp Setting
9 to 27A
HP @ 3 Phase - 460V
10
Standards
UL, CSA
Product Description
NEMA Magnetic Motor Starters with Solid State Overload Relays
- Class 10/20 selectable thermal protection 3-pole, 60/50 Hz, 600VAC max.
- Full-voltage starters start and stop 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Overload relay has heaterless construction and adjustable full load amp setting. Normally open holding circuit contact allows 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing quickly extinguishes any arcing.
- UL Listed and CSA Certified.
Expertly Selected Product Pairings
Item Barcode
Nema Magnetic Motor Starter
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5F035 | NEMA Magnetic |
 | UNSPSC CODES | 39121521 | |
 | VMRS (ATA) CODES | 053-006-009 | NEMA Magnetic |
