SCHNEIDER ELECTRIC

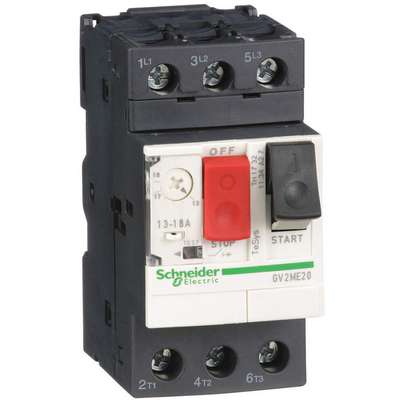

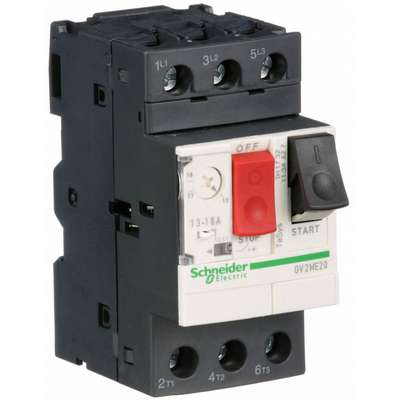

Schneider Electric Push Button Manual Motor Starter, No Enclosure, 13 to 18 Amps AC
Hover over image to magnify
#922239 | Pkg Qty: 1
$265.97 pkg | $265.97 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
13 to 18
Mfr. Part Number
GV2ME20
Brand
SCHNEIDER ELECTRIC
Number of Poles
3
Depth
2.6 in.
Package Quantity
1
Description/Special Features
Melting Alloy Thermal Overload, Single Unit
Phase Loss Sensitivity
No
Enclosure NEMA Rating
No Enclosure
Shipping Weight
.65 lb.
Enclosure Type
Open
Starter Type
IEC Style
Height
3-1/2 in.
Type
IEC
Item
Manual Motor Starter
Width
1-3/4 in.
General
HP @ 1 Phase - 115V
1
HP @ 3 Phase - 460-575V
10
HP @ 1 Phase - 120V
1 hp
HP @ 3 Phase - 460V
10
HP @ 1 Phase - 230V
3 hp
HP @ 3 Phase - 480V
10 hp
HP @ 3 Phase - 200V
5
HP @ 3 Phase - 575V
10 hp
HP @ 3 Phase - 208V
5 hp
Operator
Push Button
HP @ 3 Phase - 230V
5
Overload Relay Amp Setting
13 to 18A
HP @ 3 Phase - 240V
5 hp
Standards
UL, CSA
Product Description
IEC Manual Motor Starters
- Bimetallic thermal overload relays 3-pole Trip test Phase loss sensitivity protection 35mm DIN rail mounting Class 10 overload protection Schneider Electric Can be used alone for local, manual control of a single motor. Operating current of instantaneous magnetic trip is approx. 13 times the max. thermal trip (nonadjustable setting). 10K AIR at 480V. Mechanical and electrical life: 100,000 operations, max. 25 operations per hr. UL Listed, CSA Certified, and CE Certified. Conforms to IEC standards.
Expertly Selected Product Pairings
Item Barcode
Manual Motor Starter,Button,13-
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3CY91 | Manual Motor Starter, |
 | UNSPSC CODES | 39121521 | |
 | VMRS (ATA) CODES | 053-006-009 | Manual Motor Starter, |
