SPEEDAIRE

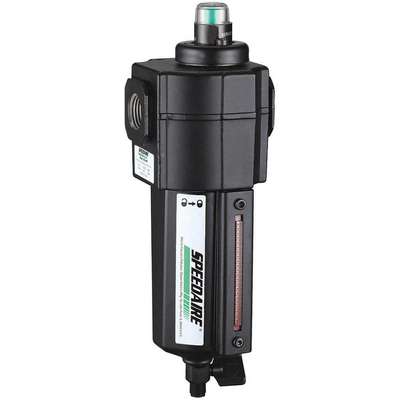

Pneumatic Oil Filter: Coalescing, 1/2 in NPT, 0.01 micron, 35 cfm, 250 psi Max Op Pressure
Hover over image to magnify
#922106-3 | Pkg Qty: 1
$110.40 pkg | $110.40 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Mfr. Part Number
4ZL45
Bowl Material
Metal with Sight Glass
Microns
0.01
Brand
SPEEDAIRE
NPT
1/2 in.
Drain Port Size
Will Fit 1/8-27 and 1/8-28 Pipe Thread
Overall Height
9.31 in.
Drain Type
1/4 in. Turn
Overall Width
3.15 in.
Filter Rating
0.01 Microns
Package Quantity
1
Item
Pneumatic Oil Filter
Pipe Size
1/2 in. NPT
Maximum Flow
35 cfm
Port Size
1/2 NPT
Maximum Flow (CFM)
35 CFM
Product Size
Standard
Maximum Pressure
250 psi
Shipping Weight
1.95 lb.
Maximum Temperature
150 deg. F
Type
Modular
Maximum Temperature (Deg. F)
150
Width
3.15 in.
General
Air Flow Direction
Left to Right
Filter Rating - Air Treatment
0.01 micron
Air Inlet Gender
Female
For Fluid Type
Compressed Air
Air Inlet Type
NPT
For Removal Of
Oil, Oil Odor, Oil Vapor, Particles, Water
Air Outlet Gender
Female
For Substance Type
Air
Air Outlet Size
1/2 in
Includes
Bowl Guard
Air Outlet Type
NPT
Max. Flow - Air Treatment
35 cfm
Bowl Material - Air Treatment
Metal with Sight Glass
Max. Flow Range - Air Treatment
31 to 40 cfm
Bowl Size - Air Treatment
7.0 oz
Max. Incoming Pressure - Air Treatment
250 psi
Connection Size - Air Treatment
1/2 in NPT
Minimum Operating Pressure
1.7 MPa
Drain Part Compatibility
114X34
Modular Connection
No Modular Connection
Filter Bowl Capacity
7 oz
Sight Glass
Prismatic
Filter Bowl Guard Included
Yes
Size - Air Treatment
Standard
Filter Bowl Guard Material
Aluminum
System Location
Main Line
Filter Bowl Material
Metal
Product Description
Features a modular connector for easy removal and replacement. Includes a service life indicator. For maximum life, use in conjunction with a general purpose air line filter equipped with a 5-micron element. For Max. Flow, the CFM is measured at 100 psig with a saturated element (3 to 5 psig drop).
