REDHAT

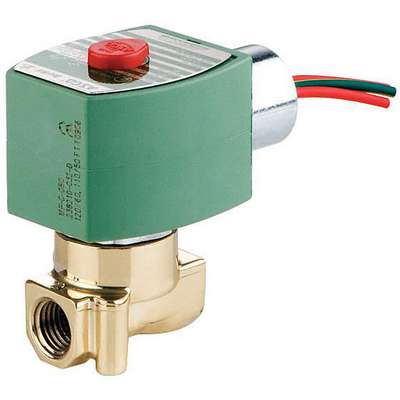

Solenoid Valve: 1/8 in Pipe Size - Valves, 12V DC, 0 psi Min. Op Pressure Differential, Brass, H
Hover over image to magnify
#922057-7 | Pkg Qty: 1
$65.38 pkg | $65.38 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CSA certified, UL listed, FM approved and meets applicable CE directives
NEMA Rating
1, 2, 3, 3S, 4, 4X
Body Material
Brass
Overall Height
2-7/8 in.
Brand
REDHAT
Overall Length
1-3/16 in.
Coefficient of Volume
0.21
Overall Width
1-11/16 in.
Configuration
Normally Closed
Package Quantity
1
Electrical Connections
1/2 in. Conduit w/18 in. Leads
Pipe Size
1/8 in.
Item
Solenoid Valve
Shipping Weight
1.05 lb.
Maximum Fluid Temperature
180°F
Valve Design
2-Way/2-Position
Media Type
Air/Inert Gas, Light Oil and Water
Voltage
12 VDC
Mfr. Part Number
8262H014
orifice Dia._spec_s
3/32 in.
General
Body Material - Valves
Brass
Media - Valves
Air, Inert Gases, Light Oil, Water
Center Line Pipe Center Size
2 1/2 in
Min. Operating Pressure Differential
0 psi
Coil Enclosure
Watertight No Junction Box
Pipe Size - Valves
1/8 in
Coil Insulation Class
H
Seal Material - Valves
NBR
Environmental Rating - Valves
Indoor, Outdoor
Solenoid Valve Product Group
Solenoid Valve
Max. Operating Pressure Differential Air/Inert Gas
235 psi
Valve Configuration
Normally Closed
Max. Operating Pressure Differential Light Oil
160 psi
Valve Ways and Positions
2-Way/2-Position
Max. Operating Pressure Differential Water
160 psi
Product Description
This solenoid valve is suitable for for liquid, corrosive, and air/inert gas service in applications such as car washes, air compressors, pumps, laundry equipment, and industrial water control.
Item Barcode
Solenoid Valve,2/2,1/8 In,Nc,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6WTU5 | Solenoid Valve,2/2,1/ |
 | UNSPSC CODES | 40141605 | |
 | VMRS (ATA) CODES | 053-008-006 | Solenoid Valve,2/2,1/ |
