NOVAFLEX

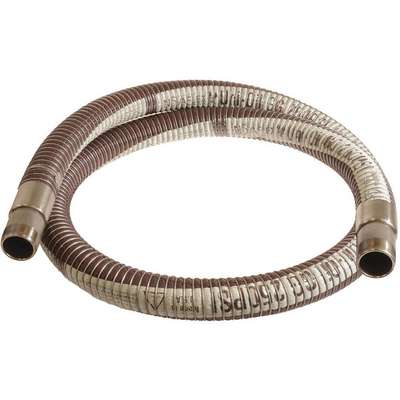

Composite Petroleum Hose: 1 in Hose Inside Dia., 1 1/2 in Hose Outside Dia., 250 psi, 25 ft Hose Lg

Hover over image to magnify
Composite Petroleum Hose,25 Ft.
Composite Petroleum Hose,25 Ft.

#922038-9 | Pkg Qty: 1

$710.04 pkg | $710.04 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
NOVAFLEX
Length
25 ft.
Color Family
Brown
Meets
USCG 154-500
Configuration
Coupled Assembly
Mfr. Part Number
CXGG100-25NN
Configuration
Coupled Assembly
Outside Diameter
1-1/2 in.
Cover Material
Nylon
Pack Quantity
1
Fitting Material
Steel
Reinforcement
Synthetic Textile with Dual Steel Helix
Fitting Type
(M)NPT
Shipping Weight
19.3 lb.
Inside Diameter
1 in.
Tube Material
Polypropylene/Polyester
Item
Composite Petroleum Hose
General
Compatible Chemicals
Antifreeze (Coolant), Automatic Transmission Fluid, Diesel Fuel, Ethyl (Ethanol), Ethylene Glycol, Gasoline, Glycerin, Heptane, Hexane, Kerosene
Hose Fitting B Size
1 in
For Media Type
Ethanol, Antifreeze, Ethylene Glycol, Glycerin, Gasoline, Heptane, Hexane, Kerosene, Diesel Fuel, Automatic Transmission Fluid, Fuel Oil
Hose Fitting B Type
MNPT
Hose Configuration
Coupled Assembly
Hose Fittings
Carbon Steel 1 in MNPT x Carbon Steel 1 in MNPT
Hose Cover Material
Nylon
Hose Outside Dia.
1 1/2 in
Hose Fitting A Material
Carbon Steel
Hose Tube Material
Polyester, Polypropylene
Hose Fitting A Size
1 in
Max. Working Pressure @ 70 F
250 psi
Hose Fitting A Type
MNPT
Temp. Range
-40 Degrees to 212 Degrees F
Hose Fitting B Material
Carbon Steel

Product Description

Polypropylene/polyester petroleum hose assemblies with nylon covers are used for transferring a wide range of petroleum products from storage tanks and process piping. They are rated for full vacuum. The hoses are made from multiple plies of polypropylene films and fabrics that are encased in a polyester vapor barrier.

Petroleum hose assemblies are designed for dispensing petroleum. These hose assemblies come with fittings installed on both ends for connecting the hose to compatible equipment. They are typically lightweight and flexible, and they have a combination of materials and features that make the hoses suitable for use in particular locations or provide resistance to additives that could be in the materials that will flow through the hose.

Item Barcode
9220389
Composite Petroleum Hose,25 Ft.
 NameItemDescription
Grainger DropshipGrainger Dropship52EE55Composite Petroleum
UNSPSC CODESUNSPSC CODES40142007
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Composite Petroleum
