ANDERSON METALS

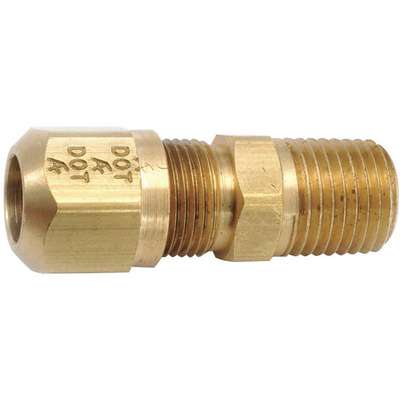

Male Connector: Brass, For 5/32 in Tube OD, 1/16 in Pipe Size, Compression x MNPT
Hover over image to magnify
#922025-6 | Pkg Qty: 1
$6.93 pkg | $6.93 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
ANDERSON METALS
Package Quantity
1
Connection
Tube x MNPT
Pipe Thread
1/16 in.
Connection Type
Male
Pressure
150 psi
DOT Approved
Yes
Shape
Connector
DOT Compression Fittings Type
Connectors
Shipping Weight
.02 lb.
Material
Brass
Tube Outside Diameter
5/32 in.
Mfr. Part Number
1468X532X1
Working Pressure
Up to 150 psi
General
Application
Air
Fitting Side B Connection Type
MNPT
Compatible Tube Material
Nylon
Fitting Side B Pipe Size
1/16 in
End Connection Type
Compression, Threaded
For Use With
Nylon Tube Airbrake
Fitting Body Material
Brass
Specific Fitting Shape
Straight Adapter
Fitting Shape
Adapter
Standards
DOT FMVSS 571.106, SAE J2494, SAE J2494-3
Fitting Side A Connection Type
Compression
System of Measurement
Imperial
Fitting Side A Tube Outer Diameter
5/32 in
Threading Size
5/16-24 x 1/16-27
Product Description
Male Connector, Compression, Pipe Size 1/16 in, Tube Size 5/32 in, Thread Size 5/16-24x 1/16-, Pressure (PSI) 150, Connection Tube x MNPT, Temp. Range -65 Degrees to 250 Degrees F, Material Brass, For Use With Nylon Tube Airbrake, Standards DOT FMVSS 571.106, SAE J2494, SAE J2494-3
Item Barcode
Male Connector,Compression,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 32WG46 | Male Connector, |
 | UNSPSC CODES | 26112101 | |
 | VMRS (ATA) CODES | 053-008-004 | Male Connector, |
