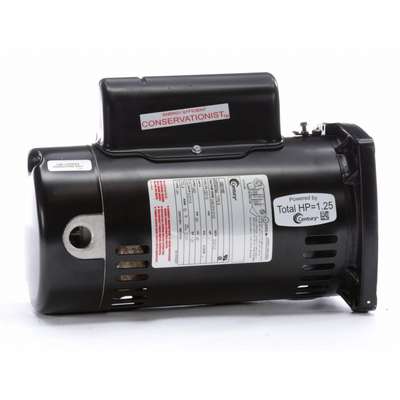

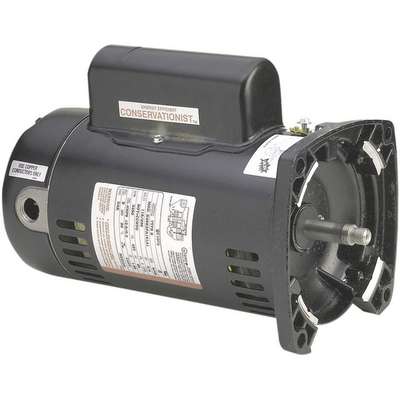

Century 1 HP Square Flange Pool Pump Motor, Capacitor-Start/Run, 3450 Nameplate RPM, 115/230 Voltage, 48Y Fr
Hover over image to magnify
#922004-2 | Pkg Qty: 1
$462.74 pkg | $462.74 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CENTURY
Mounting
Face
Design
Two Compartment
NEMA/IEC Frame
48Y
Duty
Continuous
Nameplate RPM
3450
Duty Cycle
Continuous
Overall Length
11-15/16 in.
Enclosure
Open Dripproof
Package Quantity
1
Frame
48Y
Phase
Single
Full Load Amps
12.6/6.3
Rotation
CCWSE
Height
11 in.
Service Factor
1-1/4
Hz
60
Shaft
Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
Insulation Class
B
Shaft Length
15/16 in.
Item
Pool Pump Motor
Shaft Material
Stainless Steel
Length Less Shaft
11-1/16 in.
Shipping Weight
25.4 lb.
Mfr. Part Number
UQC1102
Thermal Protection
Auto
Motor Design
Capacitor-Start/Run
Voltage
115/230 VAC
Motor Type
Permanent Split Capacitor
General
Body Dia.
5.6 in
Motor Mounting Type
Face
Efficiency Group
High
Motor Service Factor
1.25
HP
1
Motor Shaft Design
Threaded
Ins. Class
B
Motor Shaft Rotation
CCWSE
Max. Ambient Temp.
50 °C
Motor Sub Application
Pool and Spa Pump
Motor Application
Pump
Motor Thermal Protection
Auto
Motor Bearings
Ball
No. of Speeds
1
Motor Efficiency Group
Energy Efficient
RPM Range
3,001-3,600
Motor Enclosure Design
Open Dripproof
Shaft Dia.
5/8 in
Motor Frame Material
Steel
Standards
CSA, UL
Motor Mounting Position
Horizontal
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Product Description
This 2-compartment, capacitor-start motor can be used as an equivalent replacement for most popular pool and spa manufacturers' pumps. Must equal or exceed service factor and HP for proper replacement. Auto thermal protection and Ball bearings. UL Recognized and CSA Certified.
