PROTO

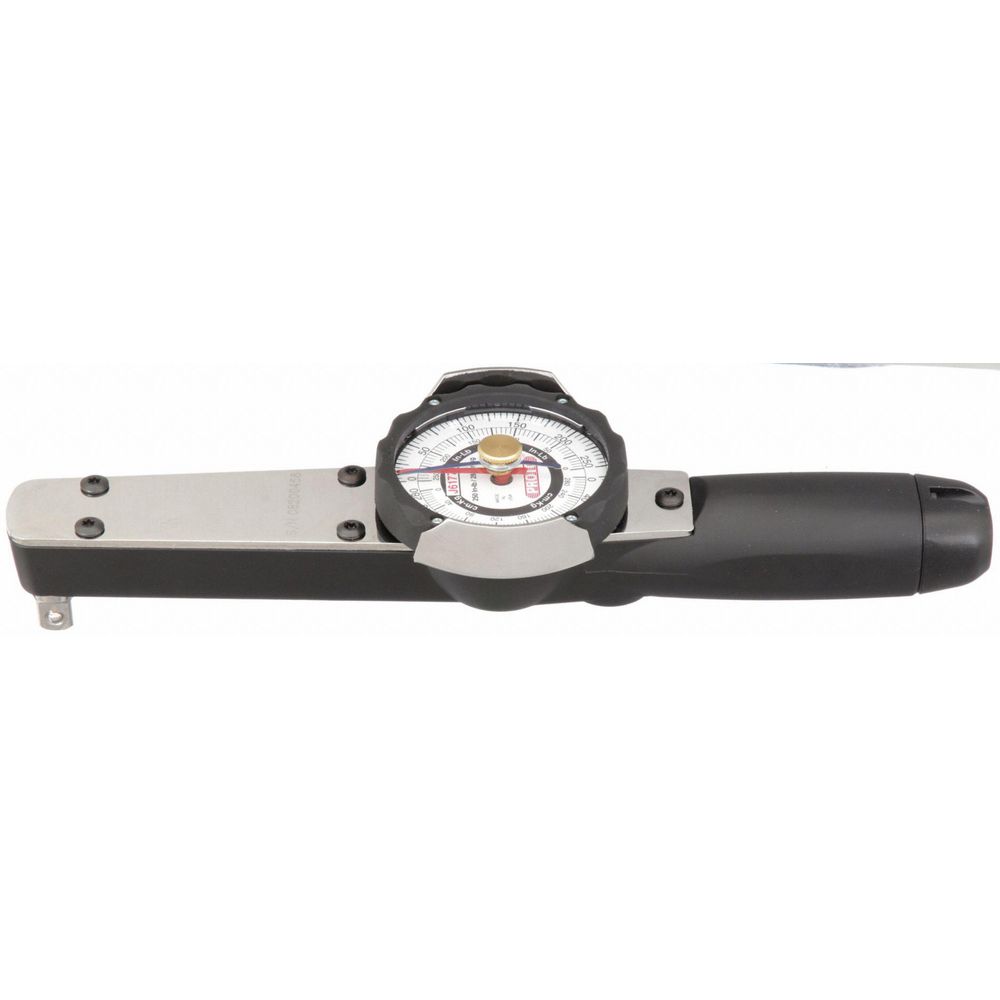

Proto Plain-Handle Dial Torque Wrench, 3/8" Drive Size, 5"-lb. Primary Scale Increments, 10"

Hover over image to magnify
Dial Torque Wrench,Drive Size
PI_Asset_1769552
Dial Torque Wrench,Drive Size
PI_Asset_1769552
Proto Plain-Handle Dial Torque Wrench, 3/8" Drive Size, 5"-lb. Primary Scale Increments, 10" Video

#921944-8 | Pkg Qty: 1

$320.39 pkg | $320.39 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Accuracy
±3% CW/CCW @ 20 to 100% of Full Scale
Mfr. Part Number
J6177F
Brand
PROTO
Overall Length
10 in.
Calibration Certificate
No
Package Quantity
1
Corrosion Resistant
Yes
Rotation
Clockwise and Counterclockwise
Drive Size
3/8 in.
Secondary Scale Range
56 to 280 cm-kg.
Handle Material
Rubber
Shipping Weight
1.85 lb.
Handle Type
Plain
Tether Capable
Tether Capable
Head Type
Standard
Torque Range
50 to 250 in.-lb., 56 to 280 cm-kg
Item
Dial Torque Wrench
Torque Type
Inch-Pound, Centimeter-Kilogram
General
Clockwise Accuracy
+/-4%
Primary Scale Range
50 to 250 in-lb
Counterclockwise Accuracy
+/-4%
Secondary Scale Increments
5 cm-kg
Extended Data Testing
Yes, NIST
Secondary Scale Maximum Torque
280 cm-kg
Includes
(1) Blow Molded Box
Secondary Scale Minimum Torque
56 cm-kg
Memory Needle
Yes
Standards
ANSI B107.14M, EN26789, ISO 6789
Min. Number of Cycles
5500
Torque Adjustability
Adjustable
Primary Scale Increments
5 in-lb
Torque Increments
5 cm-kg, 5 in-lb
Primary Scale Maximum Torque
250 in-lb
Torque Measurement Type
Inch-Pound, Centimeter-Kilogram
Primary Scale Minimum Torque
50 in-lb

Product Description

These standard-head dial torque wrenches have a design where accuracy is not affected by hand position. They have a nonmoving head and a memory pointer that indicates the maximum torque applied to the fastener. These wrenches can also identify the torque required to loosen tightened fasteners.
