PECO

Peco Line Volt Mechanical Tstat for 2-Stage Heating or Cooling, 24, 120 to 277VAC

Hover over image to magnify

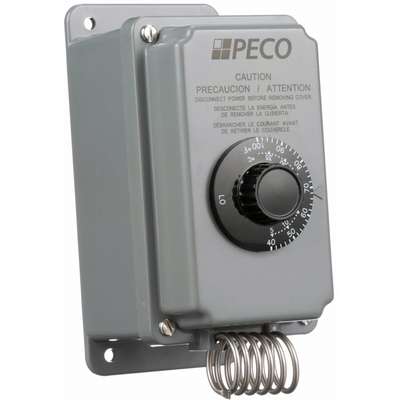

Line Volt Mechanical Tstat,24
PI_Asset_1370574
Line Volt Mechanical Tstat,24
PI_Asset_1370574

#921899-9 | Pkg Qty: 1

$131.62 pkg | $131.62 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
UL, CSA, NEC 547
Mfr. Part Number
TH109-009
Brand
PECO
Mounting Position
Surface
Color Family
Gray
Number of Stages
2
Depth
4-7/8 in.
Package Quantity
1
Differential
3°F
Shipping Weight
1.35 lb.
Display
Analog
Switch Type
SPDT
Height
7-1/3 in.
Voltage
24, 120 to 277 VAC
Item
Line Voltage Mechanical Thermostat
Width
3-1/2 in.
General
Changeover Type
Automatic
Number of Cooling Stages
2
Contact Rating Resistive @ 120V
25 A
Number of Heating Stages
2
Contact Rating Resistive @ 240V
25 A
Number of Switches
2
Contact Rating Resistive @ 277V
25 A
Pilot Duty Rating
125VA @ 120 to 277V AC
Differential Type
Fixed
Resistive Amps @ 208V AC
25 A
Enclosure Material
Plastic
Sensor Diameter
1 1/4 in
Enclosure NEMA Rating
NEMA 4X
Sensor Type
Hydraulic Air Coil
For Use With
Agricultural, Commercial and Industrial Applications
Switch Action
Open/Close on Rise
Full Load Amps @ 120V AC
16 A
Switch Type/Action
(2) SPDT, Open/Close on Rise
Includes
Oversized Enclosures to Accommodate Internally Mounted Relays or Terminal Blocks
Temperature Control Range
40 Degrees to 100 Degrees F
Key Features
Built from Corrosion Resistant Material, Rugged, Weather Resistant Enclosure
Temperature Differential
3 Degrees F
Locked Rotor Amps @ 120V
80 A
Temperature Scale
Celsius, Fahrenheit
Locked Rotor Amps @ 240V
60 A
Temperature Sensitivity
+/-3 Degrees F
Maximum Control Temperature
100 Degrees F
Thermostat Type
Line Voltage
Minimum Control Temperature
40 Degrees F

Product Description

These weatherproof temperature controls have raintight enclosures that are rated NEMA 4X, so they're suitable for areas that are exposed to water spray, high humidity, airborne contaminants, and corrosive conditions. These controls are compatible with single-stage systems. Single-stage systems have a single output level and allow the system to be either on or off. These temperature controls have an air-coil sensor that monitors and regulates the ambient air temperature in heating and ventilation applications.
