Home All Products Electrical Plugs & Connectors Single Pole Devices SKU: 921875-4

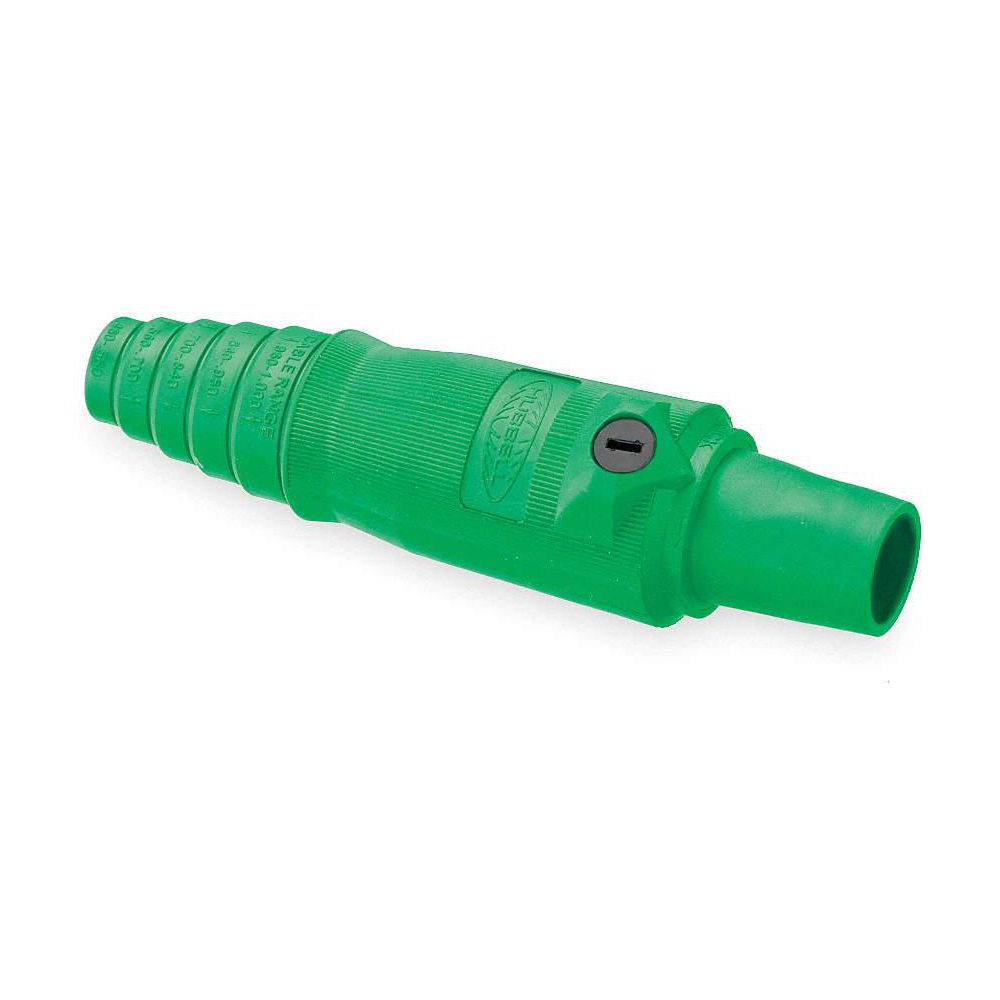

Hubbell Wiring Device-Kellems Connector, 12K, 3R, 4X NEMA Rating, 16, 400AC/DC Amps AC/DC, Taper Nose

Name: Hubbell Wiring Device-Kellems Connector, 12K, 3R, 4X NEMA Rating, 16, 400AC/DC Amps AC/DC, Taper Nose
Brand: HUBBELL WIRING DEVICE-KELLEMS
SKU: 9218754
Price: 57.72 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#921875-4Pkg Qty: 1

$57.72 pkg | $57.72 ea

In Stock

Shipping to 43085

Expected to arrive Thu. Mar 27.

Technical Specifications

Key Specifications

Amps AC

400

Material of Construction

Thermoplastic Elastomer

Amps AC/DC

400AC/DC

Maximum Wire Size

4/0 AWG

Brand

HUBBELL WIRING DEVICE-KELLEMS

Mfr. Part Number

HBL400FGN

Cable Range

2/0 to 4/0

Minimum Wire Size

2/0 AWG

Color Family

Green

NEMA Rating

12, 3R, 4X

Compatible With

Overall Length

7.1 in.

Conductor Material

Brass

Package Quantity

Contact Material

Brass

Series

Contact Type

Single Cam

Shipping Weight

.75 lb.

Current Rating

400 A

Single Pole Device Style

Taper Nose

End Type

Taper Nose

Standards

ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed

Housing Material

Thermoplastic Elastomer

Terminal Connection

Double Set Screw

Item

Connector

Type

Single Pole Device

Male/Female

Female

UL 94 Flammability Rating

Material

Thermoplastic Elastomer

Voltage Rating

250V DC, 600V AC

General

Compatible with Series

Overall Width

1.95 in

Gender

Female

Terminal Connection Type

Double Set Screw

Housing Color

Green

Product Description

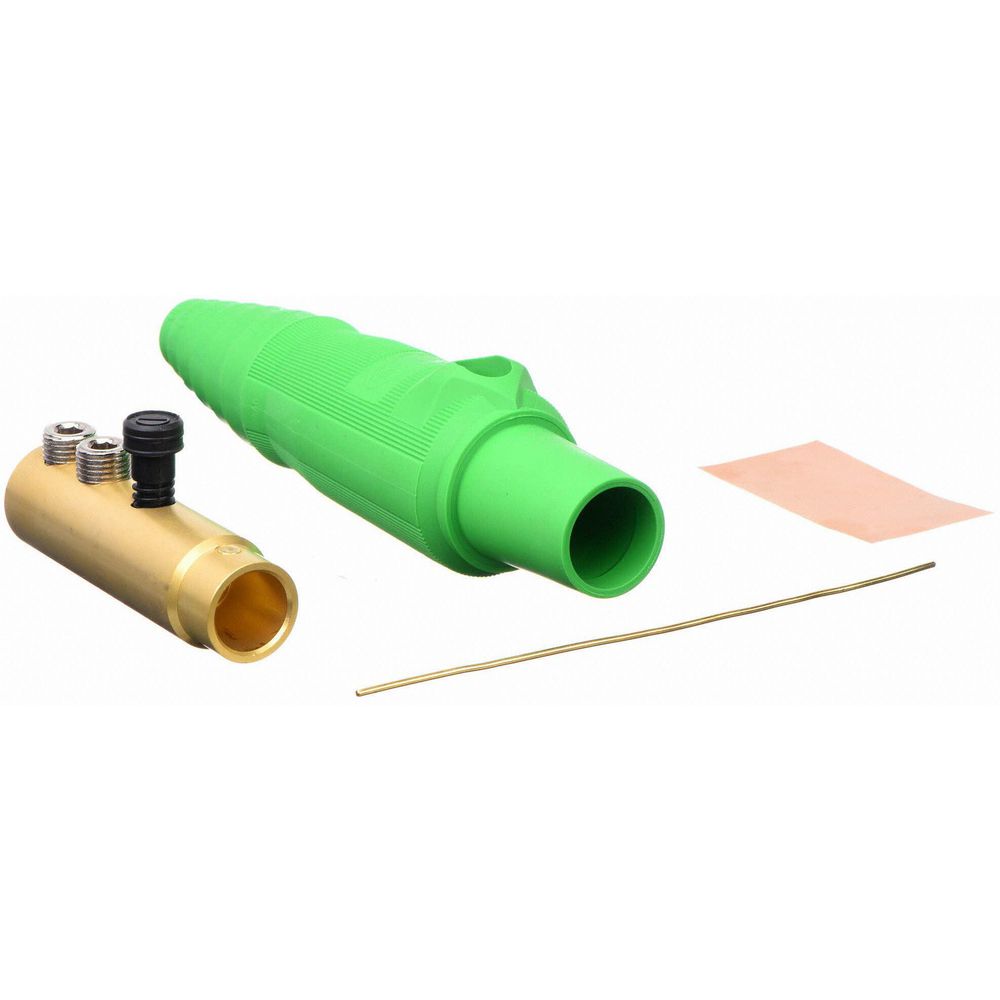

The nonmetallic retaining screw on this single pole connector is designed to lock contacts in place so they don't move within the housing. A special screw thread also helps prevent installation 180° out of rotation and requires fewer turns, reducing the chance of a conductive screw being substituted in its place. A large, raised alignment arrow helps ease mating of devices.
