SCHNEIDER ELECTRIC

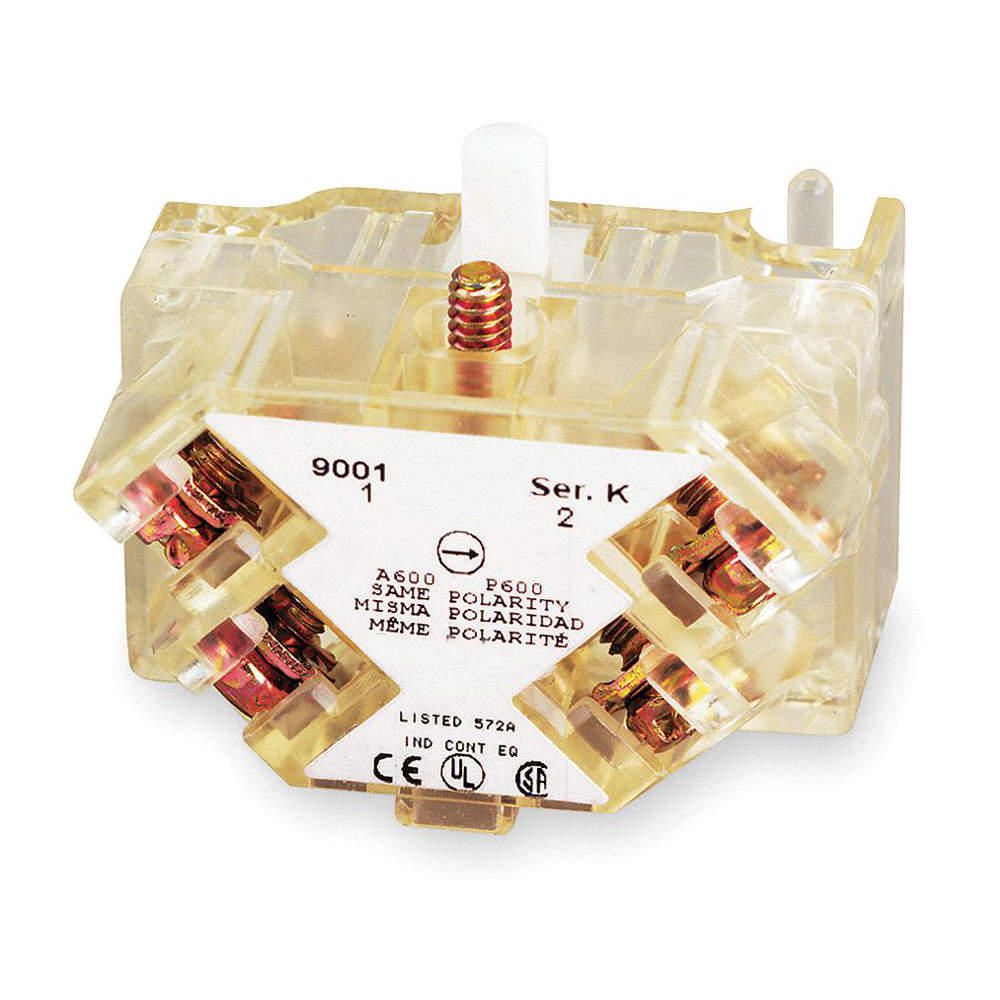

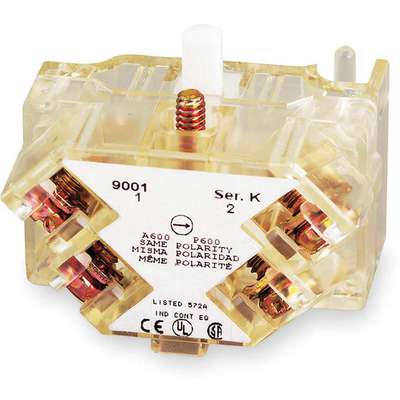

Schneider Electric Contact Block, 30mm, 1NC/1NO, Early Closing Contact Form, 10A @ 600VAC Contact Rating
Hover over image to magnify
#921826-9 | Pkg Qty: 1
$55.09 pkg | $55.09 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
Momentary
Mfr. Part Number
9001KA4
Amperage
10 AC/2.5 DC
NEMA Contact Rating Designation
A600/P600
Application
Finger Safe Operator
Package Quantity
1
Brand
SCHNEIDER ELECTRIC
Product Size
30 mm
Color Family
Clear
Shipping Weight
.06 lb.
Contact Form
1NC/1NO, Early Closing
Size
30 mm
Contact Rating
10 A @ 600 VAC
Terminal Connection
Screw/Clamp
Contact Type
1NO, 1NC
Type
(1) Early Closing Normally Open Contact, (1) Normally Closed Contact
For Use With
Schneider 9001K Series 30mm Operators
Type of Operator
Finger Proof Shroud
Item
Contact Block
Wire Range
#12-24
General
Standards
UL, CSA, CE
Product Description
30mm Contact Blocks
- NEMA rated A600-P600 #12 to 24 AWG wire range allows use of more common small wire sizes
- Terminals are at 20° angle to eliminate interference with other contact blocks mounted in tandem. Feature double-break fine silver contacts with wiping action.
