HUBBELL WIRING DEVICE-KELLEMS

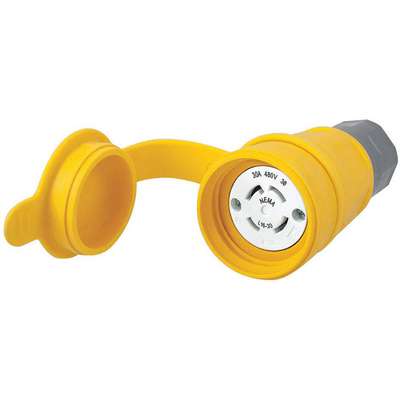

Hubbell Wiring Device-Kellems 30 Amp Industrial Grade Watertight Locking Connector, L16-30R NEMA Configuration, Yellow
Hover over image to magnify
#921809-5Pkg Qty: 1
$186.55 pkg | $186.55 ea
In Stock
Shipping to 43085
Expected to arrive Tue. Mar 25.
Technical Specifications
Key Specifications
Amperage
30 A
Maximum Wire Size
8 AWG
Amps
30 A
Mfr. Part Number
HBL29W76
Antimicrobial
No
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Cap Type
Press-On Cap
NEMA Configuration - Plugs & Connectors
L16-30
Color Family
Yellow
NEMA Plug Configuration
L16-30R
Connection Orientation
Straight
NEMA Rating
12, 4, 4X, 6, 6P
Contact Material
Nickel-Plated Brass
Number of Poles
3
Cord Size
0.375 in to 1.125 in
Number of Wires
4
Corrosion Resistant
Yes
Outside Diameter
2.77 in.
Current Rating
30 A
Overall Length
2.77 in.
Description
Twist Lock Watertight Connector
Package Quantity
1
Grade
Industrial/Commercial
Phase
Three
HP
10 HP
Power Indicator
No
Horsepower
10 hp
Shipping Weight
1 lb.
Housing Color
Yellow
Shrouded
Yes
Housing Material
Thermoplastic Elastomer
Standards
ANSI
IP Rating
IP69K
UL 94 Flammability Rating
HB
Item
Watertight Locking Connector
Voltage
480VAC
Material
Thermoplastic Elastomer, Valox
Voltage Rating
480V AC
Material of Construction
Thermoplastic Elastomer, Valox
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
60 °C
Wiring Style
Standard
General
Amps - Plugs and Receptacles
30
Special Features
Corrosion Resistant
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
480V AC
NEMA Plug Configuration - Plugs and Receptacles
L16-30R
Product Description
Features keyed interior for easy installation and high conductivity brass termination. Also designed with Gotcha® ring and collapsible bushing strain relief. The strain relief nut seals on the body, eliminating areas of debris collection, and provides impact resistance. Unique cone seal prevents dirt and debris from collecting at cable entrance. Triple bypass seal keeps water away from electrical connections. Smooth body design minimizes collection points and simplifies wash down process. Also features cone seal that adjusts to various cable ranges. All stainless steel hardware and corrosion-resistant connection points.
